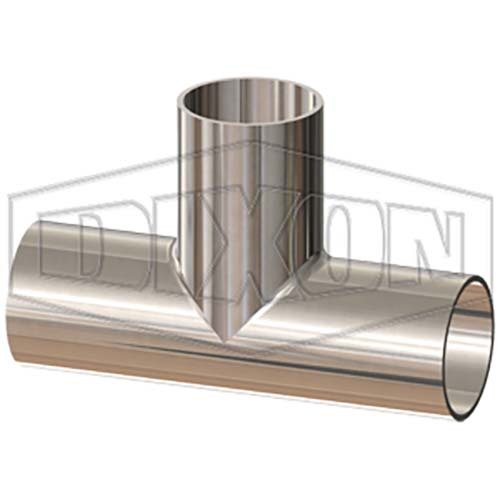

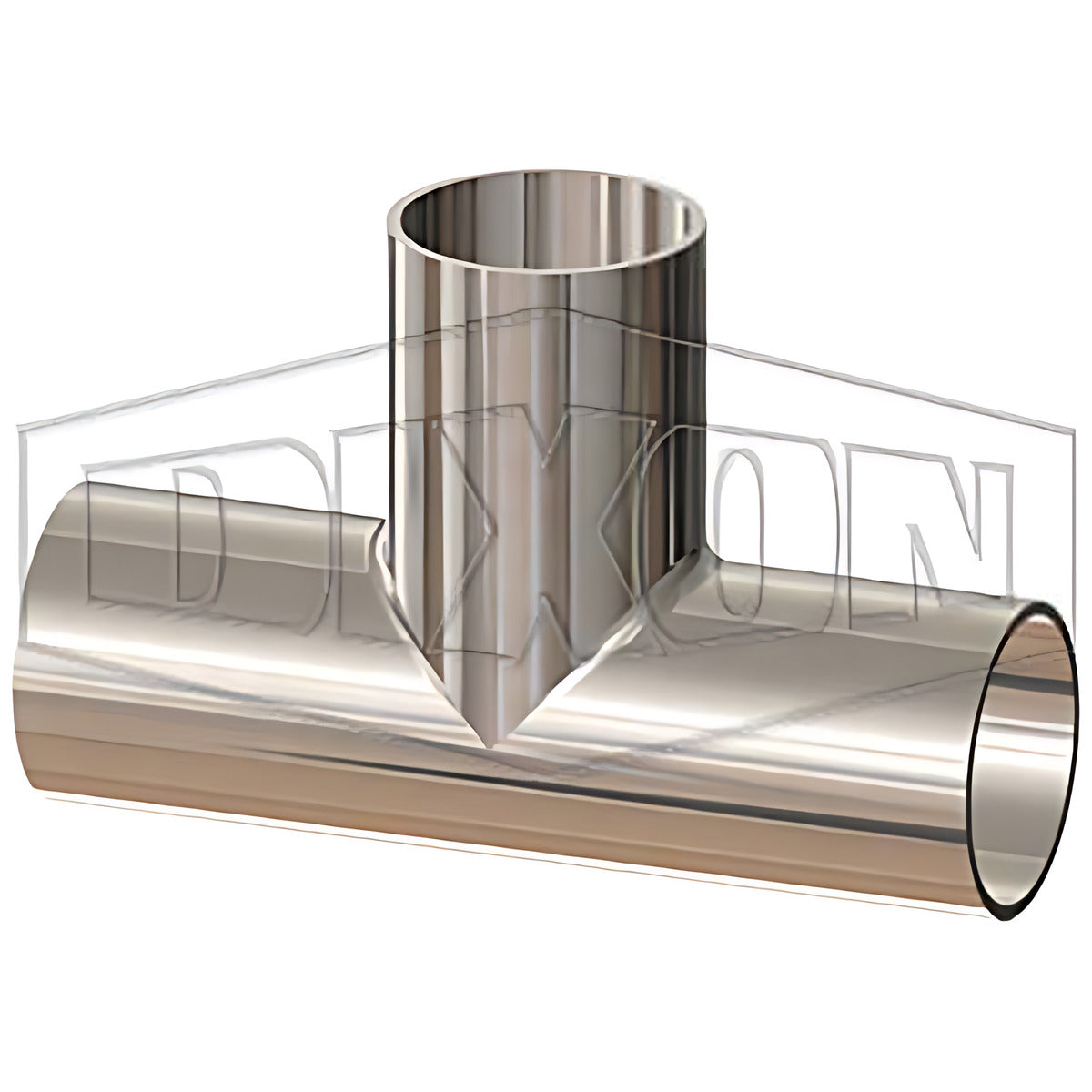

Dixon T7WWW-050PL 1/2" BioPharm Weld Tee PL Finish - SF1
Available
This Dixon BioPharm weld tee has three weld ends, so it joins three lengths of BPE tube of the same size at one point. It is 316 stainless steel and Dixon lists it in 9 sizes, from 1/2" to 6" (manufacturer-stated).
The PL finish (SF1) is mechanically polished on both surfaces: Dixon gives the outside as .812 and the inside as .508 (manufacturer-stated).
Dixon lists the tee to ASME BPE 2019 (table DT-4.1.2-1) and lists reducing tees as a separate range. The packing page says each fitting is capped, with a blue cap marking the PL finish, and that a material test report is included in the bag (manufacturer-stated).
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries (manufacturer-stated).
- Branching a process line from a main run of welded BPE tube.
- Systems where a mechanically polished inside surface (.508) meets the process specification.
Features
- Ends: weld x weld x weld (manufacturer-stated)
- Material: 316 stainless steel; Dixon's packing page lists the material as 316L (manufacturer-stated)
- PL finish (SF1): outside .812 and inside .508, both mechanically polished (manufacturer-stated)
- Listed to ASME BPE 2019 (table DT-4.1.2-1) (manufacturer-stated)
- Supplied capped, with a blue cap marking the PL finish (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel (Dixon's packing page lists 316L) |
| Ends | Weld x weld x weld |
| Finish | PL (SF1): outside .812 and inside .508, both mechanically polished |
| Standard | ASME BPE 2019 (table DT-4.1.2-1) (manufacturer-stated) |
| Weld end chemical analysis (%) | Per ASME BPE Table DT-3: C 0.030 max, Mn 2.00 max, P 0.045 max, S 0.005 to 0.017, Si 1.00 max, Cr 16.00 to 18.00, Ni 10.00 to 15.00, Mo 2.00 to 3.00 (manufacturer-stated) |
| Sizes | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
PL and PM finish compared
| PL finish (SF1) | PM finish (SF4) | |
|---|---|---|
| Outside surface (OD) | Mechanically polished, .812 | Mechanically polished, .812 |
| Inside surface (ID) | Mechanically polished, .508 | Mechanically polished and electropolished, .381 |
| Dixon 2024 catalogue wording | OD 32 Ra, ID 20 Ra, mechanically polished | OD 32 Ra mechanically polished, ID 15 Ra mechanically polished and electropolished |
| Colour of the cap on each fitting | Blue | White |
Dixon prints the finish figures without a unit on its product pages. Its BPE surface finish table lists them as Ra maximum in micrometres (um), and the 2024 Dixon catalogue prints the same finishes as 32 Ra, 20 Ra and 15 Ra. Dixon describes mechanical polishing as smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface (all manufacturer-stated).
Key specifications
| Dixon part number | Size | Tube OD (mm) | A (mm) | B (mm) | Nominal wall (in) |
|---|---|---|---|---|---|
| T7WWW-050PL | 1/2" | 12.7 | 95.2 | 47.6 | 0.065 |
| T7WWW-075PL | 3/4" | 19.05 | 101.6 | 50.8 | 0.065 |
| T7WWW-100PL | 1" | 25.4 | 108.0 | 54.0 | 0.065 |
| T7WWW-150PL | 1-1/2" | 38.1 | 120.6 | 60.3 | 0.065 |
| T7WWW-200PL | 2" | 50.8 | 146.0 | 73.0 | 0.065 |
| T7WWW-250PL | 2-1/2" | 63.5 | 158.8 | 79.4 | 0.065 |
| T7WWW-300PL | 3" | 76.2 | 171.4 | 85.7 | 0.065 |
| T7WWW-400PL | 4" | 101.6 | 209.6 | 104.8 | 0.083 |
| T7WWW-600PL | 6" | 152.4 | 285.8 | 142.9 | 0.109 |
A and B are the dimension letters in Dixon's Australian catalogue drawing, in millimetres. The nominal wall is from the 2024 Dixon catalogue and is in inches as Dixon prints it.
Selecting the right option
All three ends are weld ends in one tube size, so this tee suits a branch the same size as the run. If the branch is smaller, ask us about Dixon's reducing tee range. Match the tube OD and nominal wall from the table, then choose the finish from your process specification: the PL version is mechanically polished inside and out, the PM version is electropolished inside.
Related products
Related Dixon products: Dixon BioPharm Weld Tee PM Finish - SF4, Dixon BioPharm 90° Weld Elbow PL Finish - SF1, Dixon BioPharm Weld Reducer SS PL finish - SF1 and Dixon Automatic Weld Ferrule PL Finish - SF1.
