Dixon T2S-150PL 1-1/2" BioPharm 90° Weld Elbow PL Finish - SF1
Available

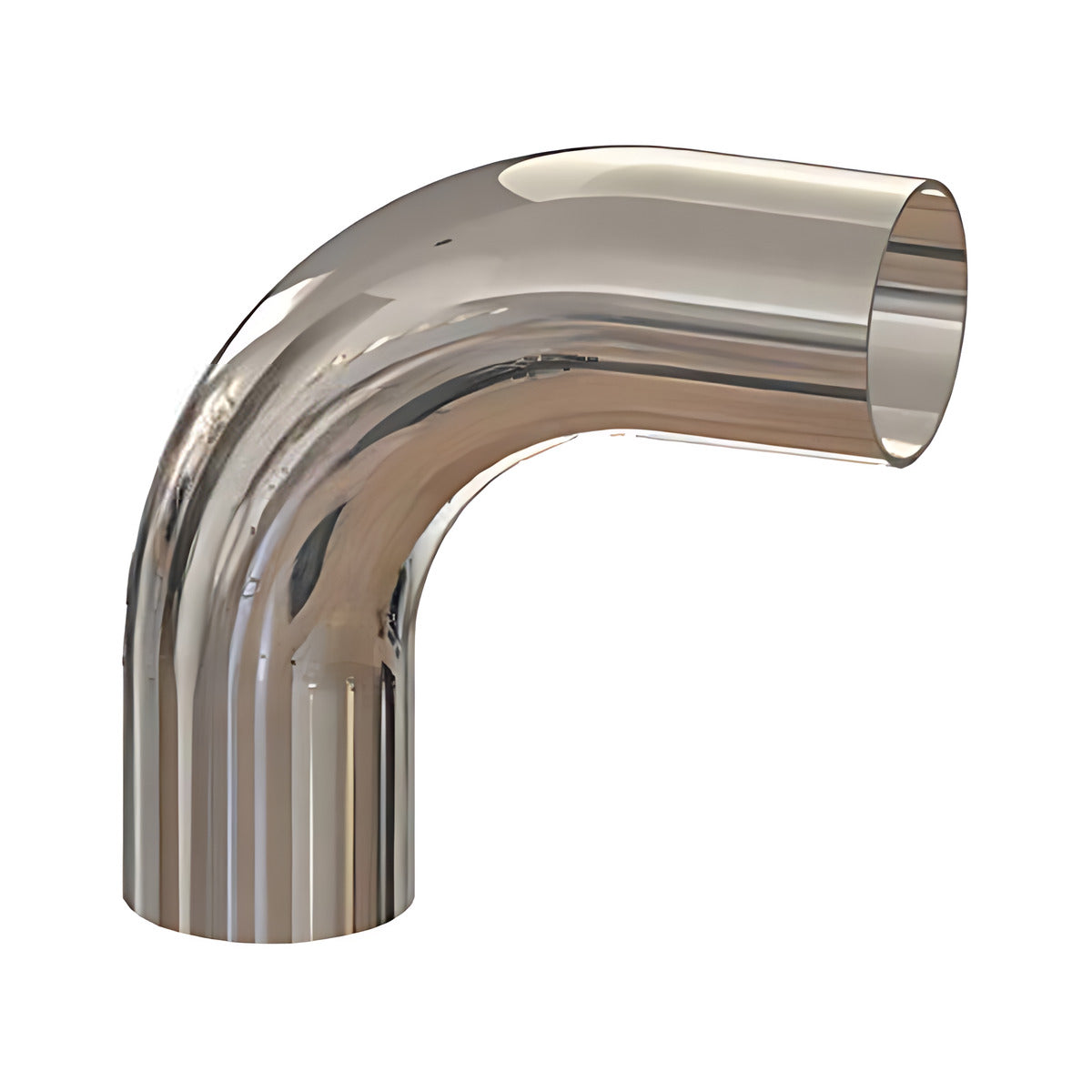

This Dixon BioPharm 90° weld elbow turns a run of BPE tube through a right angle and is welded in at both ends. It is 316 stainless steel and Dixon lists it in 9 tube sizes, from 1/2" to 6" (manufacturer-stated).
The PL finish (SF1) is mechanically polished on both surfaces: Dixon gives the outside as .812 and the inside as .508 (manufacturer-stated).
Dixon lists the elbow to ASME BPE 2019 (table DT-4.1.1-1). Its packing page lists the markings (including part number, heat number and finish code, where space allows), says a material test report is included in the bag, and says the fitting is capped, with a blue cap for the PL finish (manufacturer-stated).
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries (manufacturer-stated).
- Changing direction by 90° in welded BPE tube runs.
- Systems where a mechanically polished inside surface (.508) meets the process specification.
Features
- Ends: weld x weld (manufacturer-stated)
- Material: 316 stainless steel; Dixon's packing page lists the material as 316L (manufacturer-stated)
- PL finish (SF1): outside .812 and inside .508, both mechanically polished (manufacturer-stated)
- Listed to ASME BPE 2019 (table DT-4.1.1-1) (manufacturer-stated)
- Supplied capped, with a blue cap marking the PL finish (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel (Dixon's packing page lists 316L) |
| Ends | Weld x weld |
| Finish | PL (SF1): outside .812 and inside .508, both mechanically polished |
| Standard | ASME BPE 2019 (table DT-4.1.1-1) (manufacturer-stated) |
| Weld end chemical analysis (%) | Per ASME BPE Table DT-3: C 0.030 max, Mn 2.00 max, P 0.045 max, S 0.005 to 0.017, Si 1.00 max, Cr 16.00 to 18.00, Ni 10.00 to 15.00, Mo 2.00 to 3.00 (manufacturer-stated) |
| Sizes | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
PL and PM finish compared
| PL finish (SF1) | PM finish (SF4) | |
|---|---|---|
| Outside surface (OD) | Mechanically polished, .812 | Mechanically polished, .812 |
| Inside surface (ID) | Mechanically polished, .508 | Mechanically polished and electropolished, .381 |
| Dixon 2024 catalogue wording | OD 32 Ra, ID 20 Ra, mechanically polished | OD 32 Ra mechanically polished, ID 15 Ra mechanically polished and electropolished |
| Colour of the cap on each fitting | Blue | White |
Dixon prints the finish figures without a unit on its product pages. Its BPE surface finish table lists them as Ra maximum in micrometres (um), and the 2024 Dixon catalogue prints the same finishes as 32 Ra, 20 Ra and 15 Ra. Dixon describes mechanical polishing as smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface (all manufacturer-stated).
Key specifications
| Dixon part number | Size | Tube OD (mm) | Dimension A (mm) | Nominal wall (in) |
|---|---|---|---|---|
| T2S-050PL | 1/2" | 12.7 | 76.2 | 0.065 |
| T2S-075PL | 3/4" | 19.05 | 76.2 | 0.065 |
| T2S-100PL | 1" | 25.4 | 76.2 | 0.065 |
| T2S-150PL | 1-1/2" | 38.1 | 95.3 | 0.065 |
| T2S-200PL | 2" | 50.8 | 120.7 | 0.065 |
| T2S-250PL | 2-1/2" | 63.5 | 139.7 | 0.065 |
| T2S-300PL | 3" | 76.2 | 158.8 | 0.065 |
| T2S-400PL | 4" | 101.6 | 203.2 | 0.083 |
| T2S-600PL | 6" | 152.4 | 292.1 | 0.109 |
Dimension A and the tube OD are from Dixon's Australian catalogue; the nominal wall is from the 2024 Dixon catalogue. Nominal wall is in inches as Dixon prints it.
Selecting the right option
Match the tube OD and the nominal wall of your BPE tube before ordering: the table gives both. Choose the finish from your process specification. The PL version of this elbow is mechanically polished inside and out; the PM version is electropolished inside. Dixon lists a 45° weld elbow, clamp elbows and tees in the same finishes, so a whole run can be matched.
