Dixon TL14AM7-050PL 1/2" Automatic Weld Ferrule PL Finish - SF1
Available

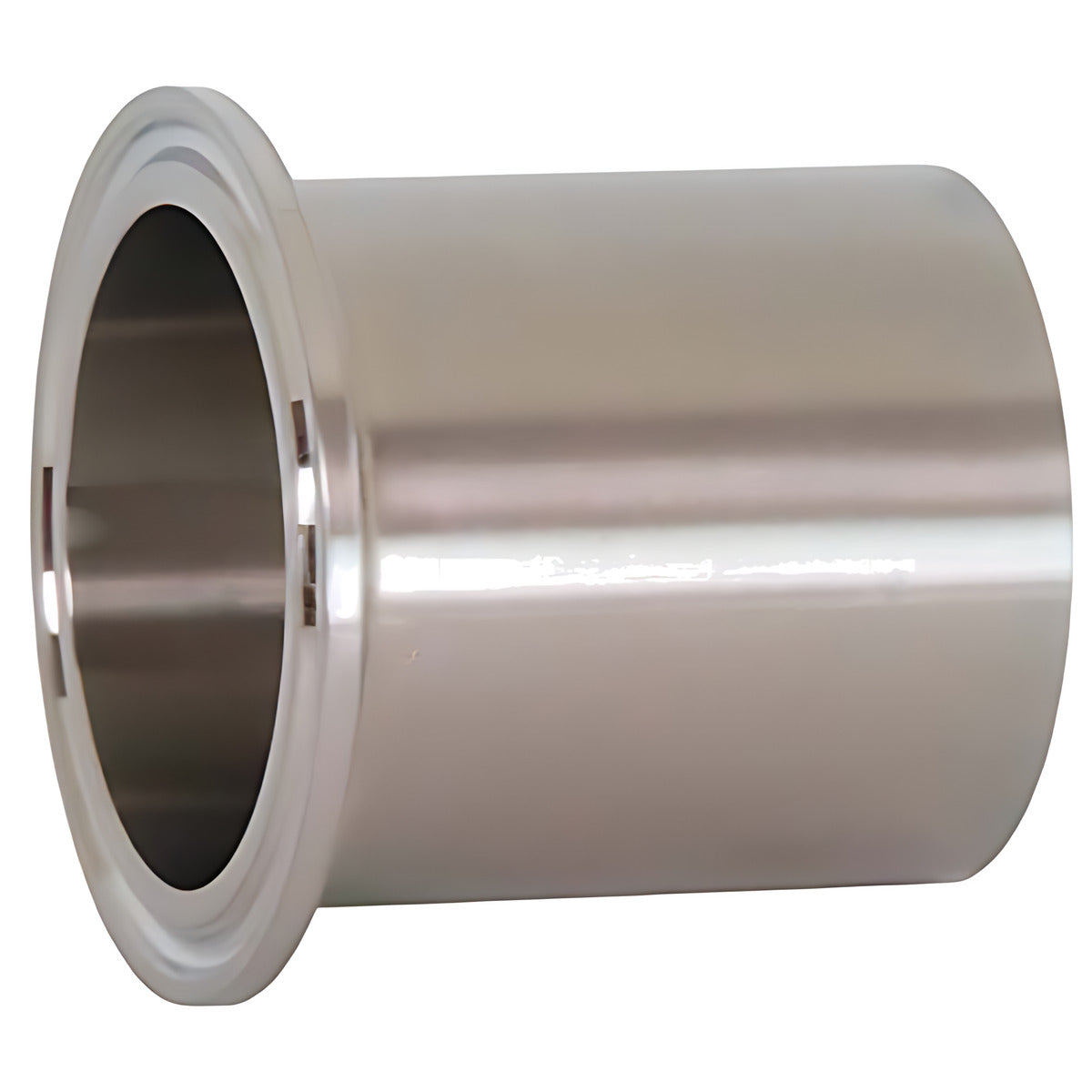

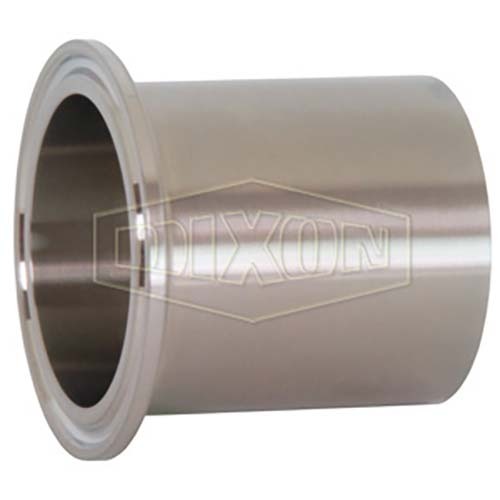

This Dixon automatic weld ferrule is a 316 stainless steel clamp-end fitting that is welded onto the end of BPE tube so the tube can be joined with a clamp and gasket. Dixon lists it in 9 sizes, from 1/2" to 6" (manufacturer-stated).
The PL finish (SF1) is mechanically polished on both surfaces: Dixon gives the outside as .812 and the inside as .508 (manufacturer-stated).
Dixon lists the ferrule to ASME BPE 2019 (table DT-4.1.4-1) and notes that short and medium (Type A and B) lengths are also available. Its packing page says each fitting is capped, with a blue cap for the PL finish (manufacturer-stated).
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries (manufacturer-stated).
- Giving welded BPE tube a clamp connection to valves, pumps, vessels and other tube.
- Systems where a mechanically polished inside surface (.508) meets the process specification.
Features
- Automatic weld ferrule, with Type A and B lengths also listed (manufacturer-stated)
- Material: 316 stainless steel; Dixon's packing page lists the material as 316L (manufacturer-stated)
- PL finish (SF1): outside .812 and inside .508, both mechanically polished (manufacturer-stated)
- Listed to ASME BPE 2019 (table DT-4.1.4-1) (manufacturer-stated)
- Supplied capped, with a blue cap marking the PL finish (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel (Dixon's packing page lists 316L) |
| Type | Automatic weld ferrule (short and medium types also listed) |
| Finish | PL (SF1): outside .812 and inside .508, both mechanically polished |
| Standard | ASME BPE 2019 (table DT-4.1.4-1) (manufacturer-stated) |
| Weld end chemical analysis (%) | Per ASME BPE Table DT-3: C 0.030 max, Mn 2.00 max, P 0.045 max, S 0.005 to 0.017, Si 1.00 max, Cr 16.00 to 18.00, Ni 10.00 to 15.00, Mo 2.00 to 3.00 (manufacturer-stated) |
| Sizes | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
PL and PM finish compared
| PL finish (SF1) | PM finish (SF4) | |
|---|---|---|
| Outside surface (OD) | Mechanically polished, .812 | Mechanically polished, .812 |
| Inside surface (ID) | Mechanically polished, .508 | Mechanically polished and electropolished, .381 |
| Dixon 2024 catalogue wording | OD 32 Ra, ID 20 Ra, mechanically polished | OD 32 Ra mechanically polished, ID 15 Ra mechanically polished and electropolished |
| Colour of the cap on each fitting | Blue | White |
Dixon prints the finish figures without a unit on its product pages. Its BPE surface finish table lists them as Ra maximum in micrometres (um), and the 2024 Dixon catalogue prints the same finishes as 32 Ra, 20 Ra and 15 Ra. Dixon describes mechanical polishing as smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface (all manufacturer-stated).
Matching clamp and gasket listed by Dixon
| Tube size | Bolted clamp | Platinum-cured silicone gasket |
|---|---|---|
| 1/2" | 13MHP75 | 42MP-XCPL50 |
| 3/4" | 13MHP75 | 42MP-XCPL75 |
| 1" | 13MHP100-150 | 40MP-XCPL100 |
| 1-1/2" | 13MHP100-150 | 40MP-XCPL150 |
| 2" | 13MHP200 | 40MP-XCPL200 |
| 2-1/2" | 13MHP250 | 40MP-XCPL250 |
| 3" | 13MHP300 | 40MP-XCPL300 |
| 4" | 13MHP400 | 40MP-XCPL400 |
| 6" | 13MHP600 | 40MPF-XCPL600 |
Dixon lists these parts against each tube size in its BioPharm catalogue and says the gaskets meet 21CFR 177.2600 and passed U.S.P class VI testing (manufacturer-stated). Ask us if you need the clamp or gasket.
Key specifications
| Dixon part number | Size | Tube OD (mm) | Dimension A (mm) | Nominal wall (in) |
|---|---|---|---|---|
| TL14AM7-050PL | 1/2" | 12.7 | 44.45 | 0.065 |
| TL14AM7-075PL | 3/4" | 19.05 | 44.45 | 0.065 |
| TL14AM7-100PL | 1" | 25.4 | 44.45 | 0.065 |
| TL14AM7-150PL | 1-1/2" | 38.1 | 44.45 | 0.065 |
| TL14AM7-200PL | 2" | 50.8 | 57.15 | 0.065 |
| TL14AM7-250PL | 2-1/2" | 63.5 | 57.15 | 0.065 |
| TL14AM7-300PL | 3" | 76.2 | 57.15 | 0.065 |
| TL14AM7-400PL | 4" | 101.6 | 57.15 | 0.083 |
| TL14AM7-600PL | 6" | 152.4 | 76.20 | 0.109 |
Dimension A is from Dixon's Australian catalogue. The nominal wall is from the 2024 Dixon catalogue and is in inches as Dixon prints it.
Selecting the right option
Pick the size from the OD of your tube and check the nominal wall in the table. The ferrule is the weld end only, so you also need a clamp and gasket of the same size: the table under Matching clamp and gasket shows what Dixon lists for each size. Choose the finish from your process specification: PL is mechanically polished inside and out, PM is electropolished inside.
