Dixon Automatic weld ferrule, 4"
Out of stock

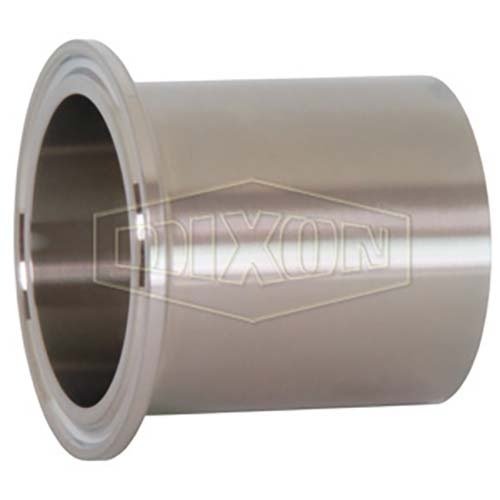

This is the Dixon Automatic Weld Ferrule PL Finish - SF1.
This Dixon automatic weld ferrule is a 316 stainless steel clamp-end fitting that is welded onto the end of BPE tube so the tube can be joined with a clamp and gasket. It comes in 9 sizes, from 1/2" to 6". The PL finish (SF1) is mechanically polished on both surfaces: the outside is 0.812 and the inside is 0.508.
The ferrule is made to ASME BPE 2019 and short and medium (Type A and B) lengths are also available. Its packing page says each fitting is capped, with a blue cap for the PL finish.
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries
- Giving welded BPE tube a clamp connection to valves, pumps, vessels and other tube
- Systems where a mechanically polished inside surface (.508) meets the process specification
Features
- Automatic weld ferrule, with Type A and B lengths also listed
- PL finish (SF1): outside.812 and inside.508, both mechanically polished
- Made to ASME BPE 2019
- Supplied capped, with a blue cap marking the PL finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Type | Automatic weld ferrule (short and medium types also listed) |
| Finish | PL (SF1): outside.812 and inside.508, both mechanically polished |
| Standard | ASME BPE 2019 |
| Weld end chemical analysis (%) | Per ASME BPE Table DT-3: C 0.030 max, Mn 2.00 max, P 0.045 max, S 0.005 to 0.017, Si 1.00 max, Cr 16.00 to 18.00, Ni 10.00 to 15.00, Mo 2.00 to 3.00 |
| Sizes | 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
Choosing the right option
Choose the finish from your process specification: PL is mechanically polished inside and out, PM is electropolished inside.
Mechanical polishing is smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface.
Related Dixon products: Dixon Automatic Weld Ferrule PM Finish - SF4, Dixon BioPharm Solid End Cap PL Finish - SF1 and Dixon BioPharm Weld Tee PL Finish - SF1.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | TL14AM7-050PL | A0156584 |
| 1" | TL14AM7-100PL | A0156586 |
| 1-1/2" | TL14AM7-150PL | A0156587 |
| 2" | TL14AM7-200PL | A0156588 |
| 2-1/2" | TL14AM7-250PL | A0156589 |
| 3/4" | TL14AM7-075PL | A0156585 |
| 3" | TL14AM7-300PL | A0156590 |
| 4" | TL14AM7-400PL | A0156591 |
| 6" | TL14AM7-600PL | A0156592 |
Product details
| Model | TL14AM7-050PL |
|---|---|
| Dixon part number | TL14AM7-050PL |
| Size | 1/2" |
| Tube OD | 12.7mm (1/2") |
| Dimension A | 44.45mm |
| Finish | PL (SF1): outside.812 and inside.508, both mechanically polished |
| Material | 316 stainless steel |
| Nominal wall | 0.065" |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Automatic Weld Ferrule PL Finish - SF1: 4"
SKU: A0156591 | Model: TL14AM7-400PL
Dixon TL14AM7-400PL: 4" automatic weld ferrule, 316 stainless steel, PL finish (SF1). Tube OD: 101.6mm (4"), Dimension A: 57.15mm.
