Dixon T16AMP-050075PL 1/2" to 3/4" BioPharm Solid End Cap PL Finish - SF1
Out of stock

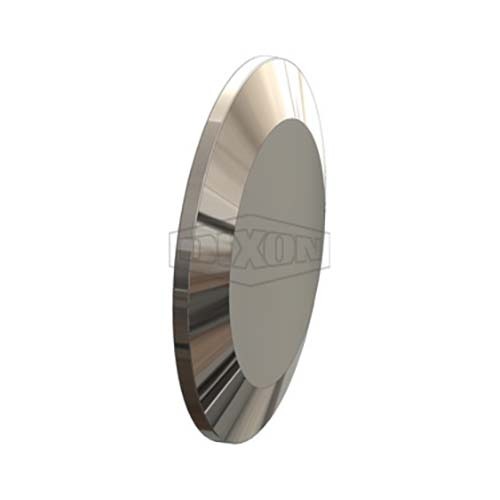

This Dixon BioPharm solid end cap closes off the end of a clamp-style BPE tube connection. It is 316 stainless steel and comes in 7 sizes: one cap for 1/2 in and 3/4 in tube, one for 1 in and 1-1/2 in tube, then 2, 2-1/2, 3, 4 and 6 in (manufacturer-stated).
The PL finish (SF1) is mechanically polished on both surfaces: Dixon gives the outside as .812 and the inside as .508 (manufacturer-stated).
Dixon lists the cap to ASME BPE 2012 (table DT-4.1.5-2). Its packing page says each fitting is capped for transport, with a blue cap marking the PL finish (manufacturer-stated).
Where this product is used
- Transport of liquid media in the biotechnology, cosmetic and pharmaceutical industries (manufacturer-stated).
- Blanking off an unused clamp connection on a BPE tube run or vessel outlet.
- Systems where a mechanically polished inside surface (.508) meets the process specification.
Features
- Solid end cap in the BioPharmaceutical Fittings (BPE) range (manufacturer-stated)
- Material: 316 stainless steel; Dixon's packing page lists the material as 316L (manufacturer-stated)
- PL finish (SF1): outside .812 and inside .508, both mechanically polished (manufacturer-stated)
- Listed to ASME BPE 2012 (table DT-4.1.5-2) (manufacturer-stated)
- Sizes: one cap each for 1/2 to 3/4 in and 1 to 1-1/2 in tube, then 2 to 6 in (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel (Dixon's packing page lists 316L) |
| Type | Solid end cap |
| Finish | PL (SF1): outside .812 and inside .508, both mechanically polished |
| Standard | ASME BPE 2012 (table DT-4.1.5-2) (manufacturer-stated) |
| Sizes | 1/2" to 3/4", 1" to 1-1/2", 2", 2-1/2", 3", 4", 6" |
PL and PM finish compared
| PL finish (SF1) | PM finish (SF4) | |
|---|---|---|
| Outside surface (OD) | Mechanically polished, .812 | Mechanically polished, .812 |
| Inside surface (ID) | Mechanically polished, .508 | Mechanically polished and electropolished, .381 |
| Dixon 2024 catalogue wording | OD 32 Ra, ID 20 Ra, mechanically polished | OD 32 Ra mechanically polished, ID 15 Ra mechanically polished and electropolished |
| Colour of the cap on each fitting | Blue | White |
Dixon prints the finish figures without a unit on its product pages. Its BPE surface finish table lists them as Ra maximum in micrometres (um), and the 2024 Dixon catalogue prints the same finishes as 32 Ra, 20 Ra and 15 Ra. Dixon describes mechanical polishing as smoothing the surface with tools and progressively finer abrasives, and electropolishing as an electrochemical process that removes material and leaves a smoother, mirror-like surface (all manufacturer-stated).
Matching clamp and gasket listed by Dixon
| Tube size | Bolted clamp | Platinum-cured silicone gasket |
|---|---|---|
| 1/2" | 13MHP75 | 42MP-XCPL50 |
| 3/4" | 13MHP75 | 42MP-XCPL75 |
| 1" | 13MHP100-150 | 40MP-XCPL100 |
| 1-1/2" | 13MHP100-150 | 40MP-XCPL150 |
| 2" | 13MHP200 | 40MP-XCPL200 |
| 2-1/2" | 13MHP250 | 40MP-XCPL250 |
| 3" | 13MHP300 | 40MP-XCPL300 |
| 4" | 13MHP400 | 40MP-XCPL400 |
| 6" | 13MHP600 | 40MPF-XCPL600 |
Dixon lists these parts against each tube size in its BioPharm catalogue and says the gaskets meet 21CFR 177.2600 and passed U.S.P class VI testing (manufacturer-stated). Ask us if you need the clamp or gasket.
Key specifications
| Dixon part number | Size | A (mm) | B (mm) |
|---|---|---|---|
| T16AMP-200PL | 2" | 6.350 | 64.008 |
| T16AMP-250PL | 2-1/2" | 6.350 | 77.470 |
| T16AMP-300PL | 3" | 6.350 | 90.932 |
| T16AMP-400PL | 4" | 7.874 | 119.126 |
| T16AMP-600PL | 6" | 11.178 | 166.624 |
| T16AMP-050075PL | 1/2" to 3/4" | 4.826 | 25.400 |
| T16AMP-100150PL | 1" to 1-1/2" | 6.350 | 50.546 |
A and B are the dimension letters in Dixon's Australian catalogue drawing, in millimetres. Dixon prints the tube OD as 12.7 mm for the 1/2 to 3/4 in cap and 38.1 mm for the 1 to 1-1/2 in cap, so tube OD is not repeated in this table.
Selecting the right option
Choose the cap by the tube size of the clamp connection it closes. The 1/2 to 3/4 in and 1 to 1-1/2 in caps each cover two tube sizes, so check the size against your ferrule or tube before ordering. You also need a clamp and gasket: the table under Matching clamp and gasket shows what Dixon lists for each size. The PL finish is mechanically polished inside and out; the PM finish is electropolished inside.
