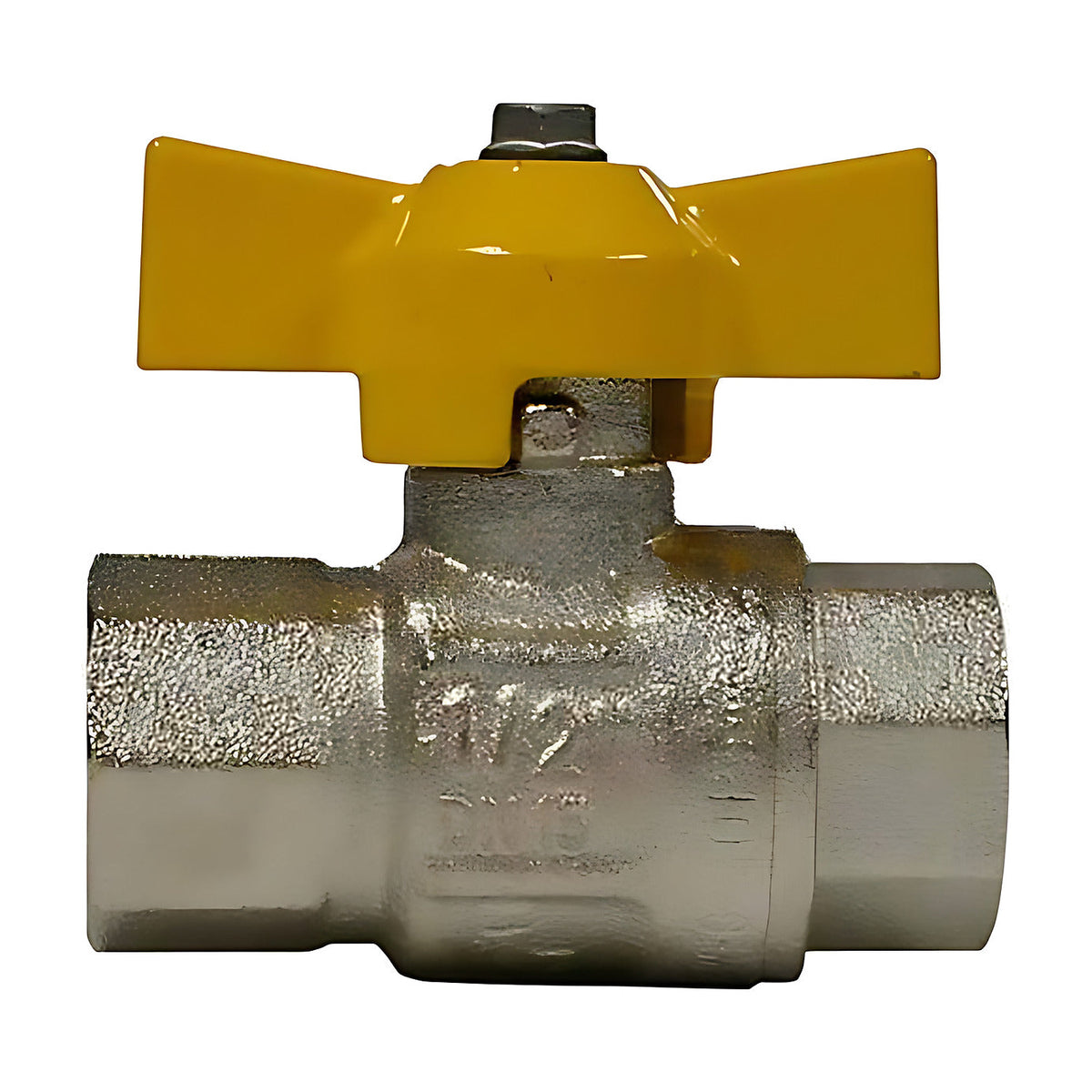

Dixon BBVAGAT006 1/4" (6 mm) T-Handle Brass Ball Valve AGA BSP
Available
This Dixon T-handle ball valve has a nickel-plated brass body and female x female BSP ends and is sold as AGA approved. Dixon lists it in 5 sizes, from 1/4" to 1" (manufacturer-stated).
Dixon rates the 1/4 in to 1/2 in sizes at 710 PSI (49 bar) and the 3/4 in and 1 in sizes at 570 PSI (39 bar). Check the AGA certification marking on the valve for your gas installation rules (manufacturer-stated).
Where this product is used
- Gas isolation points where an AGA-approved valve is required, subject to your installation rules (manufacturer-stated).
- Compact isolation on air, water and other compatible lines.
Features
- T-handle operation (manufacturer-stated)
- Body: nickel-plated brass (manufacturer-stated)
- End connection: female x female BSP (manufacturer-stated)
- Working pressure: 710 PSI (49 bar) for 1/4 to 1/2 in; 570 PSI (39 bar) for 3/4 and 1 in (manufacturer-stated)
- Sold as AGA approved (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body material | Nickel-plated brass |
| Handle | T-handle |
| End connection | Female x female BSP |
| Working pressure | 710 PSI (49 bar) for 1/4 to 1/2 in; 570 PSI (39 bar) for 3/4 and 1 in |
| Approval | AGA (manufacturer-stated) |
| Sizes | 1/4", 3/8", 1/2", 3/4", 1" |
Key specifications
| Dixon part number | Size | Working pressure | Catalogue weight (kg) |
|---|---|---|---|
| BBVAGAT006 | 1/4" (6 mm) | 710 PSI (49 bar) | 0.16 |
| BBVAGAT010 | 3/8" (10 mm) | 710 PSI (49 bar) | 0.16 |
| BBVAGAT012 | 1/2" (15 mm) | 710 PSI (49 bar) | 0.20 |
| BBVAGAT020 | 3/4" (20 mm) | 570 PSI (39 bar) | 0.30 |
| BBVAGAT025 | 1" (25 mm) | 570 PSI (39 bar) | 0.43 |
Weights are the figures in Dixon's catalogue.
Selecting the right option
Confirm the gas, pressure and installation standard for your job before you choose, and keep the AGA marking (manufacturer-stated) visible on the installed valve. Both ends are female BSP. Dixon also lists a lever-handle male x female version of this valve in its catalogue; ask us if you need it.
