Dixon Mini brass ball valve, 1/4" (6mm)
Available
This Dixon mini ball valve has a nickel-plated brass body, a chrome-plated brass ball, a PTFE seat and female x female BSP ends. It is a full-bore valve with a blow-out proof stem. It comes in 4 sizes, from 1/4" to 3/4".
Every size is rated at 220 PSI (15 bar) and gives an operating temperature of 0 to 90°C. The BSP threads meet ISO 228 (equivalent to DIN 259 and BS 2779).
Where this product is used
- Domestic water services, heating and air-conditioning plants, and compressed air systems
- Small-bore isolation points on branch lines, gauges and instruments
Features
- Full-bore passage with a blow-out proof stem and chrome ball
- Body: nickel-plated brass, seat: PTFE, ball: chrome-plated brass
- End connection: female x female BSP, ISO 228
- Working pressure: 220 PSI (15 bar)
- Operating temperature: 0 to 90°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Body material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Seat | PTFE |
| End connection | Female x female BSP (ISO 228) |
| Working pressure | 220 PSI (15 bar) |
| Operating temperature | 0 to 90°C |
| Sizes | 1/4", 3/8", 1/2", 3/4" |
Choosing the right option
Check which end pattern you need: this valve has female x female BSP ends, and the male x female version is sold separately.
Related Dixon valves: Dixon Brass Mini Ball Valve Female BSP x Male BSP, Dixon General Purpose Brass Ball Valve With Stainless Steel Handle and Dixon 316 Stainless Steel Two Piece Ball Valve BSP Female x Male.
| Option | Part number | SKU |
|---|---|---|
| 6 | MBVFF006 | A0070650 |

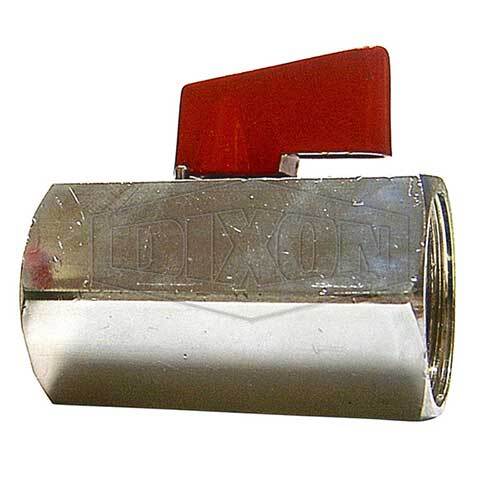

| 10 | MBVFF010 | A0070651 |
| 15 | MBVFF012 | A0070652 |
| 20 | MBVFF020 | A0070653 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Brass Mini Ball Valve Female BSP x Female BSP: 6
SKU: A0070650 | Model: MBVFF006
Dixon MBVFF006: 1/4" (6mm) nickel-plated brass mini ball valve, BSP female x female, 220 PSI. Working pressure: 220 PSI (15 bar).
