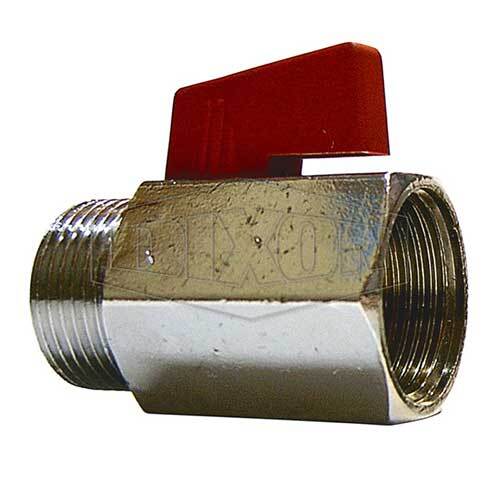

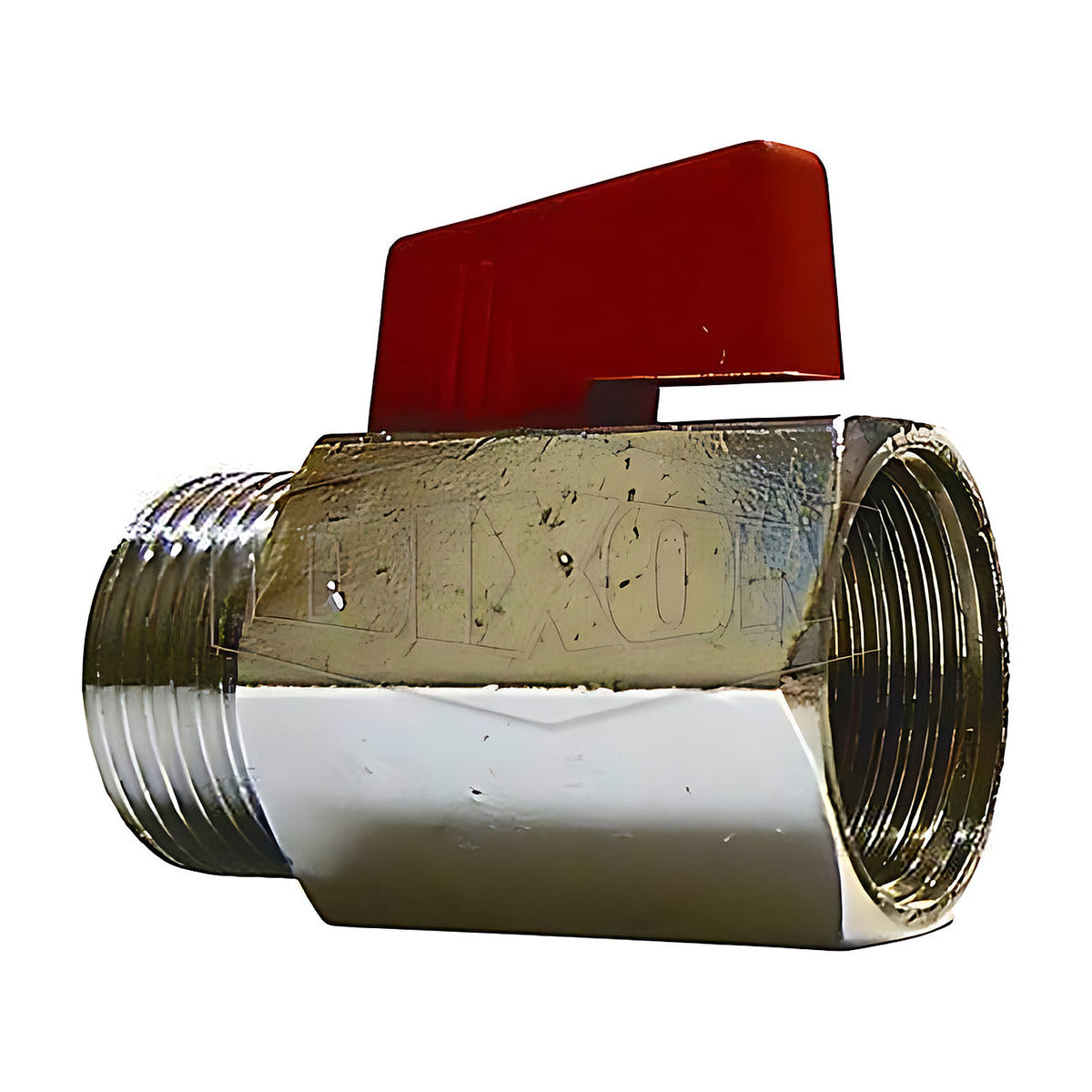

Dixon MBVMF006 1/4" (6 mm) Brass Mini Ball Valve Female BSP x Male BSP

This Dixon mini ball valve has a nickel-plated brass body, a chrome-plated brass ball, a PTFE seat and male x female BSP ends. It is a full-bore valve with a blow-out proof stem. Dixon lists it in 4 sizes, from 1/4" to 3/4" (manufacturer-stated).

Dixon rates every size at 220 PSI (15 bar) and gives an operating temperature of 0 to 90 degrees C. The BSP threads are listed to ISO 228 (described by Dixon as equivalent to DIN 259 and BS 2779) (manufacturer-stated).

Where this product is used

• Domestic water services, heating and air-conditioning plants, and compressed air systems (manufacturer-stated).
• Small-bore isolation points on branch lines, gauges and instruments.

Features

• Full-bore passage with a blow-out proof stem and chrome ball (manufacturer-stated)
• Body: nickel-plated brass; seat: PTFE; ball: chrome-plated brass (manufacturer-stated)
• End connection: male x female BSP, ISO 228 (manufacturer-stated)
• Working pressure: 220 PSI (15 bar) (manufacturer-stated)
• Operating temperature: 0 to 90 degrees C (manufacturer-stated)

Common specifications

Key specifications

Selecting the right option

Check which end pattern you need: this valve has male x female BSP ends, and the female x female version is listed separately. At 220 PSI it is a light-duty valve, so for higher pressures use one of the stainless or general-purpose brass ball valves in Related products.
