Dixon BFV032 1-1/4" (32 mm) Brass Foot Valve BSP
Available

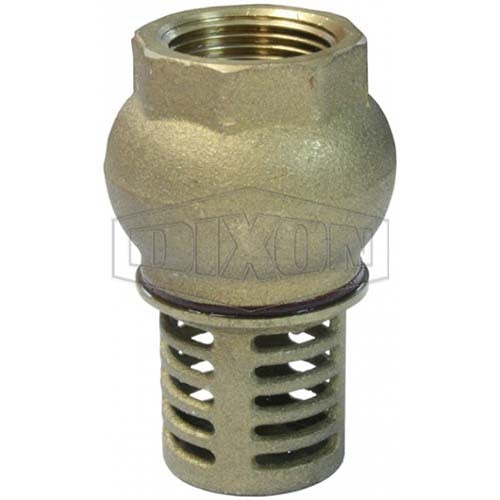

This Dixon foot valve has a brass body, a full bore passage and a 304 stainless steel strainer cartridge, with screwed female BSP ends. This listing covers 8 sizes, from 3/4" (20 mm) to 4" (100 mm).
Dixon rates it at 0 to 90 degrees C, with a working pressure of 140 PSI (10 bar) at the smaller sizes, falling to 90 PSI (6 bar) at 2-1/2 in and above. It lists the valve for general industrial, irrigation and rural services (manufacturer-stated).
Where this product is used
- General industrial, irrigation and rural services (manufacturer-stated).
- The suction end of a pump line, to hold the line full and keep debris out of the pump.
Features
- Brass body with a stainless steel AISI 302 spring and nitrile butadiene rubber seal (manufacturer-stated)
- 304 stainless steel strainer cartridge (manufacturer-stated)
- Full bore, with screwed female BSP ends conforming to ISO228, equivalent to DIN259 and BS2779 (manufacturer-stated)
- Working pressure 90 to 140 PSI depending on size; temperature 0 to 90 degrees C (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body | Brass |
| Spring | Stainless steel AISI 302 |
| Seal | Nitrile butadiene rubber |
| Strainer cartridge | 304 stainless steel |
| Bore | Full bore |
| End connection | Screwed female BSP conforming to ISO228 (equivalent to DIN259 and BS2779) (manufacturer-stated) |
| Temperature | 0 to 90 degrees C |
| Working pressure | 90 to 140 PSI, by size (see table) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| BFV020 | 3/4" (20 mm) | 140 PSI (10 bar) |
| BFV025 | 1" (25 mm) | 140 PSI (10 bar) |
| BFV032 | 1-1/4" (32 mm) | 110 PSI (8 bar) |
| BFV040 | 1-1/2" (40 mm) | 110 PSI (8 bar) |
| BFV050 | 2" (50 mm) | 110 PSI (8 bar) |
| BFV065 | 2-1/2" (65 mm) | 90 PSI (6 bar) |
| BFV075 | 3" (80 mm) | 90 PSI (6 bar) |
| BFV100 | 4" (100 mm) | 90 PSI (6 bar) |
The working pressure falls as the size increases; use the figure for your size.
Selecting the right option
Choose the size from the female BSP thread on your suction line and check the working pressure for that size. The strainer cartridge is there to keep debris out, so check it from time to time in dirty water. For a check valve that sits in the line rather than at the end of the suction hose, see Dixon Brass Inline Spring Check Valve Europa Brass Stem.
