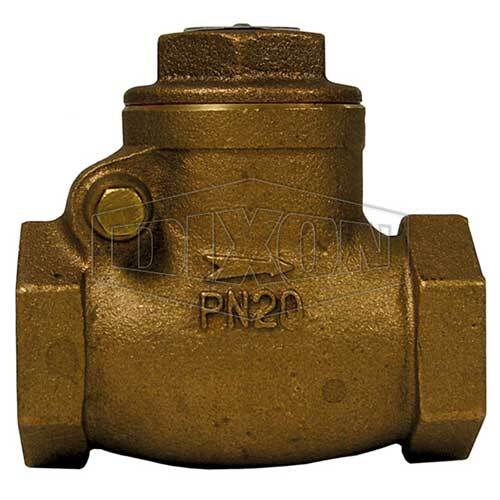

Dixon VC-4B-020 3/4" (20 mm) Bronze Swing Check Valve BSP

This Dixon swing check valve has a bronze body and screwed female BSP ends. Dixon says it can be fitted in either vertical or horizontal pipelines (manufacturer-stated). This listing covers 7 sizes, from 1/2" (15 mm) to 3" (80 mm).

Dixon rates the range at 290 PSI (20 bar) for water, oil and gas, with a maximum temperature of 99 degrees C, and lists it for general hydraulic and mechanical services and fire protection (manufacturer-stated).

Where this product is used

• General hydraulic and mechanical services (manufacturer-stated).
• Fire protection pipework (manufacturer-stated).
• Water, oil and gas lines within the pressure and temperature ratings above.

Features

• Bronze body with screwed female BSP ends (manufacturer-stated)
• Can be used in vertical or horizontal pipelines (manufacturer-stated)
• Working pressure: 290 PSI (20 bar) for water, oil and gas (manufacturer-stated)
• Maximum temperature: 99 degrees C (manufacturer-stated)

Common specifications

Key specifications

Dixon's catalogue prints the 1/2 in valve as 12 mm (part VC-4B-015); this page follows the store size of 15 mm. Dixon also lists a 100 mm (4 in) valve, VC-4B-100, which is not part of this listing.

Selecting the right option

Choose the size from the female BSP thread on your pipework. A swing check valve passes flow in one direction only, so fit it with the flow direction in mind and keep it away from points where flow pulses hard. For a spring-loaded in-line check valve that Dixon lists for vertical, horizontal or oblique positions, see the brass in-line range: Dixon Brass Inline Spring Check Valve Europa Brass Stem.
