Dixon V20GVT 3/4" (20 mm) DZR Brass Gate Valve Female BSP
Available

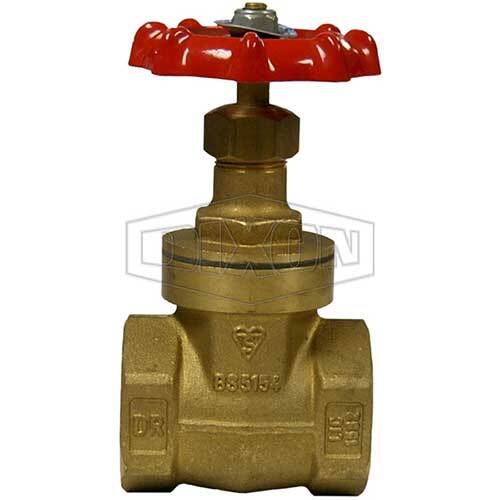

This Dixon gate valve has a DZR (dezincification resistant) brass body and a solid DZR brass wedge disc, with female BSP ends and an iron handwheel. This listing covers 8 sizes, from 1/2" (15 mm) to 3" (80 mm).
Dixon rates the range at 362 PSI (25 bar) and -20 to 120 degrees C, and lists it for industrial, pneumatic, hydraulic and HVAC use (manufacturer-stated). Dixon states that the range complies with AS1628, is Watermark approved and has lead free certification to AS3718-2021 (manufacturer-stated).
Where this product is used
- Isolation on industrial, pneumatic, hydraulic and HVAC lines (manufacturer-stated).
- Water services where a lead free, DZR brass valve is specified, subject to the approvals marked on the valve (manufacturer-stated).
Features
- Body and wedge: DZR brass, with a solid wedge disc (manufacturer-stated)
- Iron handwheel, adjustable packing nut and integral seat (manufacturer-stated)
- End connection: female BSP (manufacturer-stated)
- Working pressure: 362 PSI (25 bar); temperature -20 to 120 degrees C (manufacturer-stated)
- Approvals listed by Dixon: complies with AS1628, Watermark approved, lead free certification to AS3718-2021 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body | DZR brass |
| Wedge | DZR brass, solid wedge disc |
| Handwheel | Iron |
| Design | Adjustable packing nut, integral seat |
| End connection | Female BSP |
| Working pressure | 362 PSI (25 bar) |
| Temperature | -20 to 120 degrees C |
| Approvals | Complies with AS1628; Watermark approved; lead free certification to AS3718-2021 (manufacturer-stated) |
| Sizes | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (80 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| V15GVT | 1/2" (15 mm) | 362 PSI (25 bar) |
| V20GVT | 3/4" (20 mm) | 362 PSI (25 bar) |
| V25GVT | 1" (25 mm) | 362 PSI (25 bar) |
| V32GVT | 1-1/4" (32 mm) | 362 PSI (25 bar) |
| V40GVT | 1-1/2" (40 mm) | 362 PSI (25 bar) |
| V50GVT | 2" (50 mm) | 362 PSI (25 bar) |
| V65GVT | 2-1/2" (65 mm) | 362 PSI (25 bar) |
| V80GVT | 3" (80 mm) | 362 PSI (25 bar) |
Dixon's catalogue prints the metric size of the 1/2 in valve as 12 mm. The store size follows the part number (V15GVT is listed as 15 mm); the inch size is the same in both. Dixon also lists a 100 mm (4 in) valve, V100GVT, which is not part of this listing.
Selecting the right option
Choose the size from the female BSP thread on your pipework, and check that the approval marked on the valve meets your installation rules before you use it on potable water. A gate valve is for on and off service and should be fully open or fully closed; use a globe valve where you need to regulate flow.
