Dixon SYS-025 1" (25 mm) 316 Stainless Y Line Strainer BSP
Available

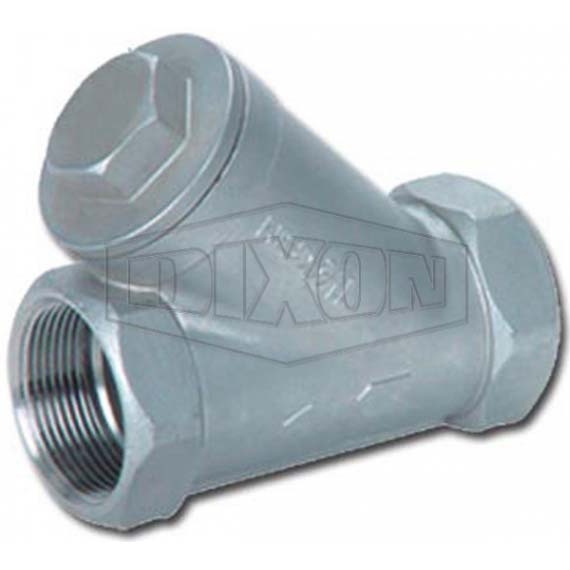

This Dixon Y line strainer is 316 stainless steel throughout, body and element, with female BSP connections. This listing covers 6 sizes, from 1/2" (15 mm) to 2" (50 mm).
Dixon rates it at 800 PSI CWP (55 bar) and -20 to 232 degrees C for water, oil, gas and corrosive fluids, and lists it for water, oil, gas and steam (manufacturer-stated).
Where this product is used
- Water, oil, gas and steam lines (manufacturer-stated).
- Corrosive fluids that suit 316 stainless steel, up to the temperature Dixon gives (manufacturer-stated).
Features
- Body and element: 316 stainless steel (manufacturer-stated)
- End connection: female BSP (manufacturer-stated)
- Working pressure: 800 PSI CWP (55 bar) (manufacturer-stated)
- Temperature: -20 to 232 degrees C for water, oil, gas and corrosive fluids (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body and element | 316 stainless steel |
| End connection | Female BSP |
| Working pressure | 800 PSI CWP (55 bar) |
| Temperature | -20 to 232 degrees C for water, oil, gas and corrosive fluids |
| Sizes | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| SYS-015 | 1/2" (15 mm) | 800 PSI CWP (55 bar) |
| SYS-020 | 3/4" (20 mm) | 800 PSI CWP (55 bar) |
| SYS-025 | 1" (25 mm) | 800 PSI CWP (55 bar) |
| SYS-032 | 1-1/4" (32 mm) | 800 PSI CWP (55 bar) |
| SYS-040 | 1-1/2" (40 mm) | 800 PSI CWP (55 bar) |
| SYS-050 | 2" (50 mm) | 800 PSI CWP (55 bar) |
Dixon's catalogue prints the 1/2 in size as 12 mm and gives part number SYS-015; this page follows the store size of 15 mm. The catalogue does not give a mesh or micron rating for this strainer, so confirm it with us if the mesh opening matters for your duty.
Selecting the right option
Check the BSP thread on your pipework and the media against 316 stainless steel before ordering. For domestic water, heating or compressed air duty up to 290 PSI (20 bar), Dixon also lists a brass strainer: Dixon Brass Y Line Strainer.
Related products
Related Dixon valves: Dixon Brass Y Line Strainer, Dixon Bronze Swing Check Valve Screwed Female BSP and Dixon Brass Foot Valve.
