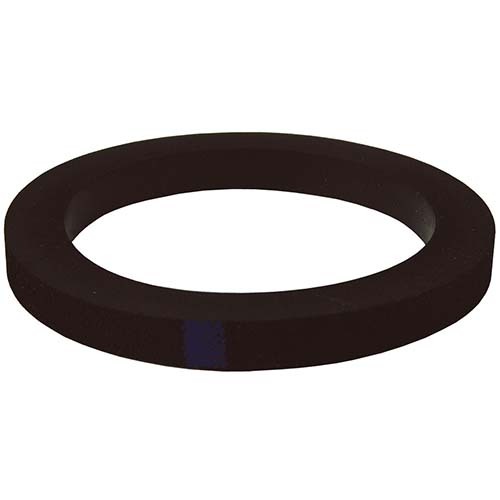

Dixon Camlock gasket, 1/2" (15mm)
Available
Dixon also offers a separate nitrile gasket formulated for fuel service (the -BF series, black with one green stripe), so check which one your job needs. It is black with one blue stripe and is available in 12 coupling sizes, from 15mm (1/2") to 200mm (8").
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors in the matching size, where nitrile buna is the standard material
- General-purpose camlock sealing where Buna-N suits the media, check the media against the material before use
Features
- Material: Nitrile buna rubber (Buna-N)
- Colour code: Black, 1 blue stripe
- Fits: Dixon cam and groove (camlock) couplings, sized in mm
- Sizes: 15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4"), 125mm (5"), 150mm (6"), 200mm (8")
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Nitrile buna rubber (Buna-N) |
| Colour code | Black, 1 blue stripe |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4"), 125mm (5"), 150mm (6"), 200mm (8") |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Choosing the right option
Start with the coupling size. Then check the material against the media you will handle, because the gasket is the part in contact with the product. No interchange standard exists for the 1/2", 5" and 8" fittings (15mm, 125mm and 200mm), so gaskets in those sizes are not suitable for use in other manufacturers' couplings.
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket Extra Thick Buna-N Black/2 Blue Stripes, Dixon Cam & Groove Gasket Neoprene Black/1 Red Stripe and Dixon Cam & Groove Gasket FKM Black/1 Yellow Stripe.
| Option | Part number | SKU |
|---|---|---|
| 15 | 50-G-BU | A0068201 |
| 20 | 75-G-BU | A0068243 |
| 25 | 100-G-BU | A0067631 |
| 32 | 125-G-BU | A0067649 |
| 40 | 150-G-BU | A0067786 |
| 50 | 200-G-BU | A0067873 |
| 65 | 250-G-BU | A0067925 |
| 75 | 300-G-BU | A0067954 |
| 100 | 400-G-BU | A0068029 |
| 125 | 500-G-BU | A0068196 |
| 150 | 600-G-BU | A0068211 |
| 200 | 800-G-BU | A0068253 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe: 15
SKU: A0068201 | Model: 50-G-BU
Dixon 50-G-BU: 1/2" (15mm) Buna-N camlock gasket, black, 1 blue stripe. Outside diameter (nominal): 26.19mm, Inside diameter (nominal): 17.46mm.
