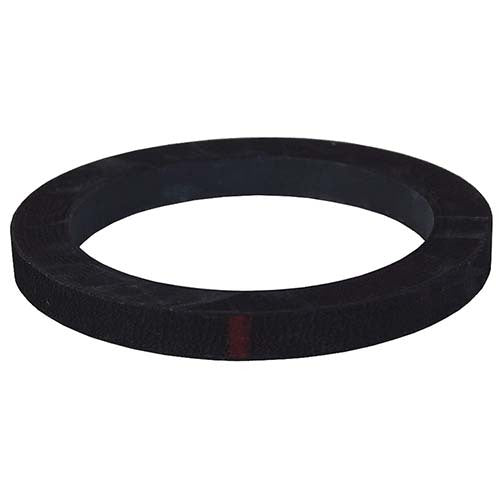

Dixon Camlock gasket, 3/4" (20mm)
Out of stock
This Dixon cam and groove (camlock) gasket is made from neoprene and is colour coded black with one red stripe. Part numbers follow the size code plus -G-NE, for example 100-G-NE for the 25mm coupling. Dixon also offers a white neoprene version (-WNE) separately and describes it as an FDA approved material.
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors from 20mm to 100mm
- Camlock joints where neoprene suits the media, check the media against the material before use
Features
- Material: Neoprene
- Colour code: Black, 1 red stripe
- Fits: Dixon cam and groove (camlock) couplings, sized in mm
- Sizes: 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4")
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Neoprene |
| Colour code | Black, 1 red stripe |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4") |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Choosing the right option
Start with the coupling size. Then check the material against the media you will handle, because the gasket is the part in contact with the product. If you need a white gasket, the white neoprene version is separate product.
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket White Neoprene White/No Stripe, Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe and Dixon Cam & Groove Gasket Ethylene Propylene Black/1 White Stripe.
| Option | Part number | SKU |
|---|---|---|
| 20 | 75-G-NE | A0068245 |
| 25 | 100-G-NE | A0067633 |
| 40 | 150-G-NE | A0067788 |
| 50 | 200-G-NE | A0067875 |
| 65 | 250-G-NE | A0067927 |
| 75 | 300-G-NE | A0067956 |
| 100 | 400-G-NE | A0068031 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Cam & Groove Gasket Neoprene Black/1 Red Stripe: 20
SKU: A0068245 | Model: 75-G-NE
Dixon 75-G-NE: 3/4" (20mm) neoprene camlock gasket, black, 1 red stripe. Outside diameter (nominal): 34.93mm, Inside diameter (nominal): 22.23mm.
