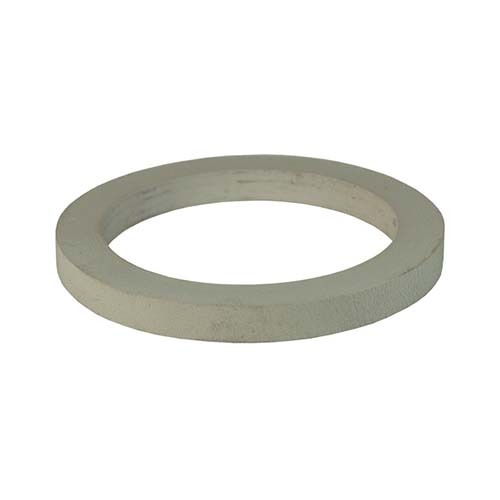

Dixon 150-G-WNE 1-1/2" (40 mm) Cam & Groove Gasket White Neoprene White/No Stripe
Out of stock
This Dixon cam and groove (camlock) gasket is made from white neoprene, which Dixon describes as an FDA approved material (manufacturer-stated). It is white with no stripe and is listed in 6 coupling sizes, from 40 mm (1-1/2 in) to 150 mm (6 in).
Part numbers use the size code plus -G-WNE, for example 300-G-WNE for the 75 mm coupling. This is the white neoprene range in Dixon's gasket chart, with the 40 mm to 150 mm sizes (manufacturer-stated).
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors from 40 mm to 150 mm where a white, FDA approved gasket material is wanted (manufacturer-stated).
Features
- Material: White neoprene (manufacturer-stated)
- Colour code: White, no stripe (manufacturer-stated)
- FDA approved material (manufacturer-stated)
- Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
- Coupling sizes in this listing: 40, 50, 75, 100, 125, 150 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | White neoprene |
| Colour code | White, no stripe |
| Approval | FDA approved material (manufacturer-stated) |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 40 mm (1-1/2 in), 50 mm (2 in), 75 mm (3 in), 100 mm (4 in), 125 mm (5 in), 150 mm (6 in) |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Key specifications
| Dixon part number | Size | Outside dia. (mm) | Inside dia. (mm) | Thickness (mm) |
|---|---|---|---|---|
| 150-G-WNE | 1-1/2" (40 mm) | 55.56 | 41.28 | 6.35 |
| 200-G-WNE | 2" (50 mm) | 66.68 | 50.80 | 6.35 |
| 300-G-WNE | 3" (75 mm) | 94.46 | 78.20 | 6.35 |
| 400-G-WNE | 4" (100 mm) | 123.83 | 101.60 | 6.35 |
| 500-G-WNE | 5" (125 mm) | 150.81 | 123.83 | 6.35 |
| 600-G-WNE | 6" (150 mm) | 179.39 | 152.40 | 6.35 |
Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.
Selecting the right option
Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). Check that the FDA approved material description meets your own compliance requirements before use (manufacturer-stated). Dixon adds that no interchange standard exists for the 1/2 in, 5 in and 8 in fittings (15 mm, 125 mm and 200 mm), so gaskets in those sizes are not suitable for use in other manufacturers' couplings (manufacturer-stated).
