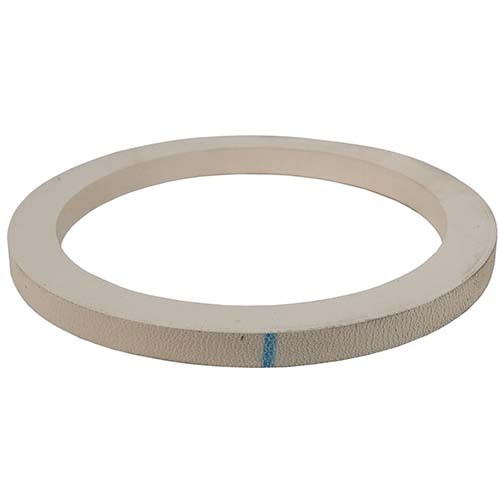

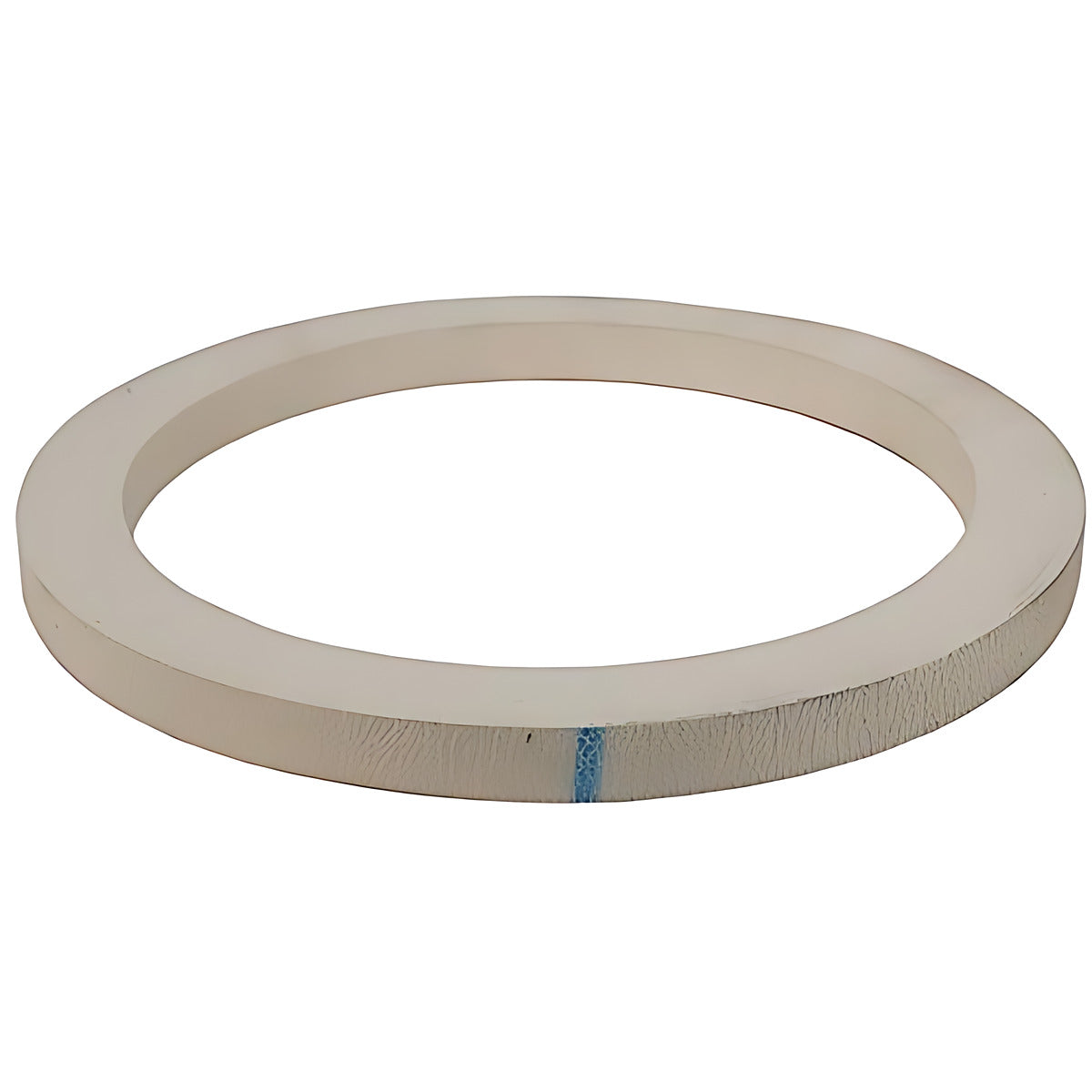

Dixon 300-G-WB 3" (75 mm) Cam & Groove Gasket White Buna-N White/1 Blue Stripe
Available
This Dixon cam and groove (camlock) gasket is made from white nitrile buna rubber, which Dixon describes as an FDA approved material (manufacturer-stated). It is white with one blue stripe and this listing covers the 75 mm (3 in) and 100 mm (4 in).
The part numbers are 300-G-WB and 400-G-WB. The same coupling sizes are also listed in black Buna-N, neoprene, white neoprene and silicone, so you can change material without changing the fit. Dixon gives nominal diameters and thickness for each size, shown in the table below (manufacturer-stated).
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors in the 75 mm and 100 mm sizes where a white, FDA approved gasket material is wanted (manufacturer-stated).
Features
- Material: White nitrile buna rubber (Buna-N) (manufacturer-stated)
- Colour code: White, 1 blue stripe (manufacturer-stated)
- FDA approved material (manufacturer-stated)
- Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
- Coupling sizes in this listing: 75, 100 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | White nitrile buna rubber (Buna-N) |
| Colour code | White, 1 blue stripe |
| Approval | FDA approved material (manufacturer-stated) |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 75 mm (3 in), 100 mm (4 in) |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Key specifications
| Dixon part number | Size | Outside dia. (mm) | Inside dia. (mm) | Thickness (mm) |
|---|---|---|---|---|
| 300-G-WB | 3" (75 mm) | 94.46 | 78.20 | 6.35 |
| 400-G-WB | 4" (100 mm) | 123.83 | 101.60 | 6.35 |
Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.
Selecting the right option
Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). Check that the FDA approved material description meets your own compliance requirements before use (manufacturer-stated).
Related products
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket White Neoprene White/No Stripe, Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe and Dixon Cam & Groove Gasket Silicone Red/No Stripe.
