Dixon Camlock gasket, 2" (50mm)
Available

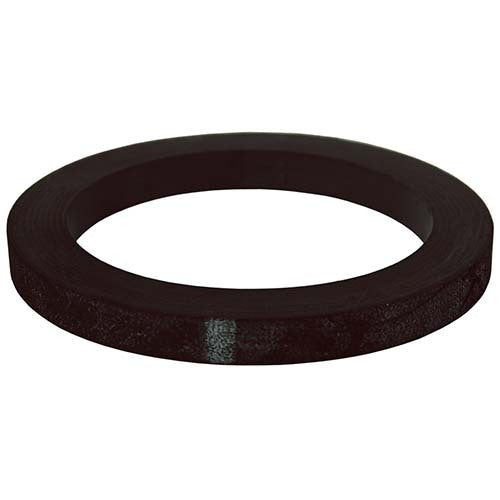

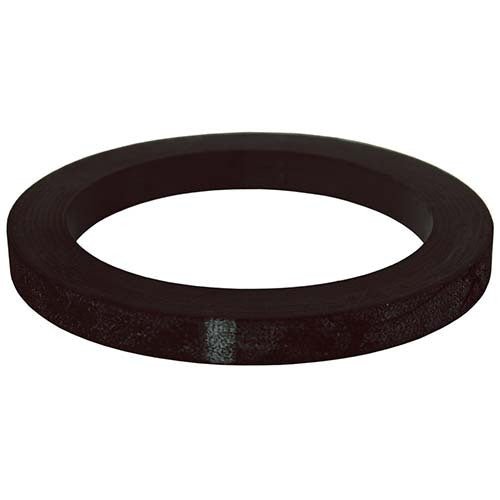

This Dixon cam and groove (camlock) gasket is made from ethylene propylene (EPR) and carries a black body with one white stripe. It is available in 7 coupling sizes, from 20mm (3/4") to 100mm (4").
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors from 20mm to 100mm
- Camlock joints where ethylene propylene suits the media, check the media against the material before use
Features
- Material: Ethylene propylene (EPR)
- Colour code: Black, 1 white stripe
- Fits: Dixon cam and groove (camlock) couplings, sized in mm
- Sizes: 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4")
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Ethylene propylene (EPR) |
| Colour code | Black, 1 white stripe |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 65mm (2-1/2"), 75mm (3"), 100mm (4") |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Choosing the right option
Start with the coupling size. Then check the material against the media you will handle, because the gasket is the part in contact with the product. Ethylene propylene is not a general substitute for Buna-N or FKM, so confirm the media with the material before you swap one for the other.
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe, Dixon Cam & Groove Gasket Neoprene Black/1 Red Stripe and Dixon Cam & Groove Gasket Silicone Red/No Stripe.
| Option | Part number | SKU |
|---|---|---|
| 20 | 75-G-EPR | A0068244 |
| 25 | 100-G-EPR | A0067632 |
| 40 | 150-G-EPR | A0067787 |
| 50 | 200-G-EPR | A0067874 |
| 65 | 250-G-EPR | A0067926 |
| 75 | 300-G-EPR | A0067955 |
| 100 | 400-G-EPR | A0068030 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Cam & Groove Gasket Ethylene Propylene Black/1 White Stripe: 50
SKU: A0067874 | Model: 200-G-EPR
Dixon 200-G-EPR: 2" (50mm) ethylene propylene camlock gasket, black, 1 white stripe. Outside diameter (nominal): 66.68mm.
