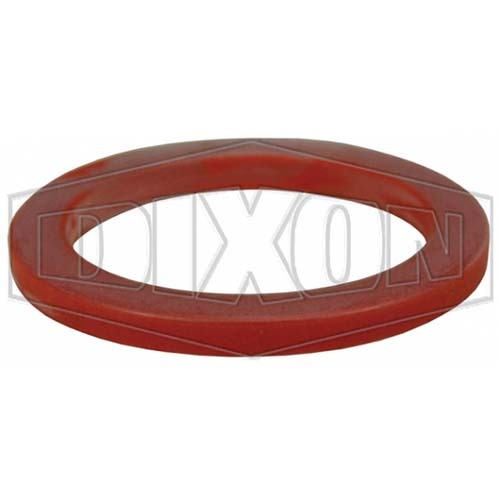

Dixon Camlock gasket, 3/4" (20mm)

This Dixon cam and groove (camlock) gasket has a silicone core encapsulated in PTFE (FEP) and is colour coded translucent / red with no stripe. It is available in 8 coupling sizes, from 20mm (3/4") to 100mm (4"). It has a maximum operating temperature of 107°C (225 degrees F) for the -TES gasket, and its materials are FDA approved.

Maximum operating temperatures for specific chemicals may be lower.

Where this product is used

• Replacement gasket for Dixon cam and groove couplings and adaptors from 20mm to 100mm where a PTFE face is wanted
• Camlock joints where the PTFE face suits the media, confirm the temperature and media with Dixon for aggressive chemicals

Features

• Material: PTFE (FEP) encapsulated silicone core
• Colour: Translucent / red, no stripe
• Contains FDA approved materials
• Maximum operating temperature: 107°C (225 degrees F)
• Pressure rating reduced to 125 PSI for 3/4" to 4" sizes at ambient temperature 70 degrees F (21°C)

Key specifications

Choosing the right option

Start with the coupling size. Then check the material against the media you will handle, because the gasket is the part in contact with the product. PTFE gasket designs need the most torque to close the cam handles, rising from envelope to encapsulated to accordion styles.

Pressure and temperature figures are Dixon's encapsulated gasket specifications.

Related Dixon camlock gaskets: Dixon Cam & Groove Gasket PTFE Encapsulated FKM Translucent/Black, Dixon Cam & Groove Gasket Silicone Red/No Stripe and Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe.
