Dixon GAS2334NOS Notched Shank Ferrule, 40 mm stem, hose OD 48.8 to 54.8 mm
Out of stock

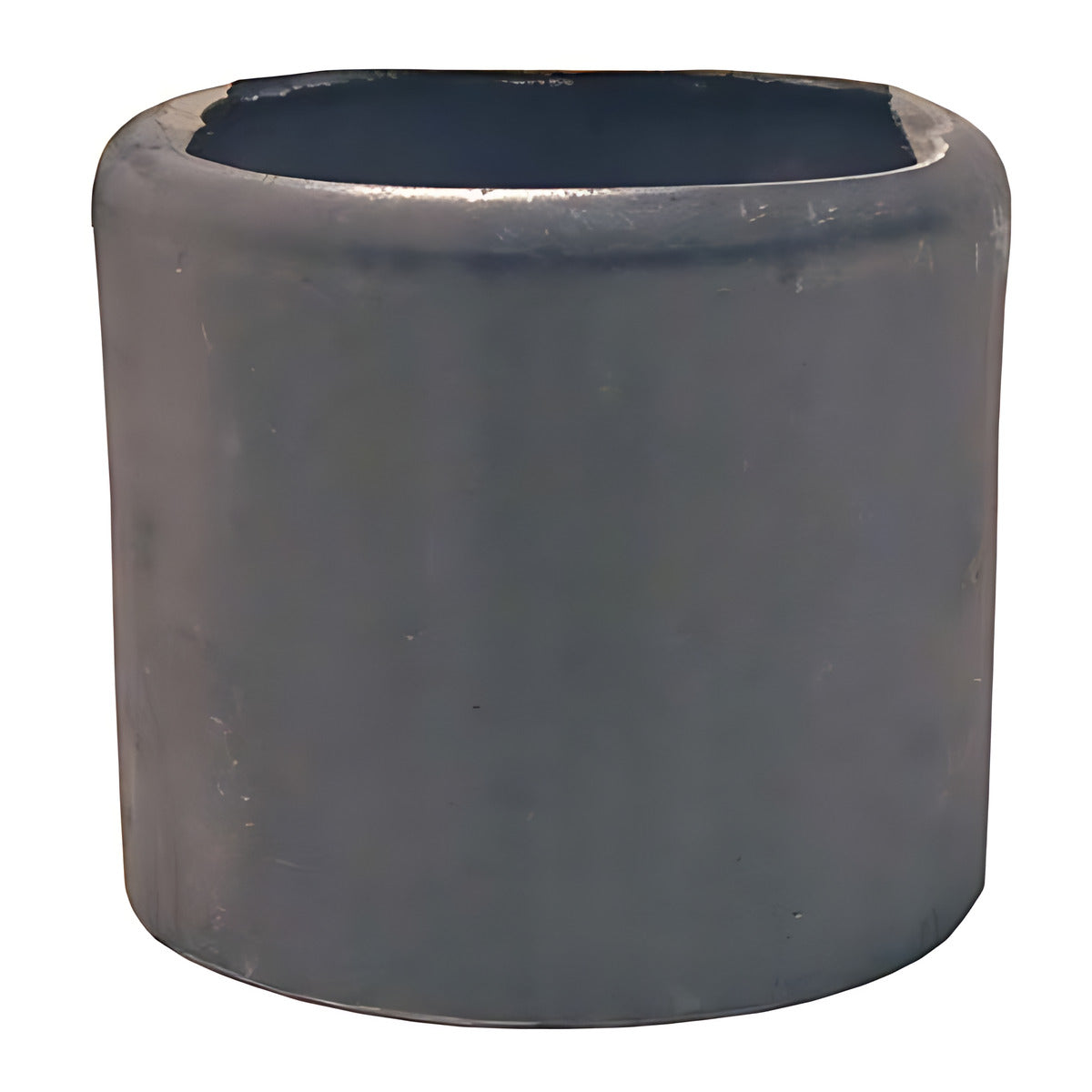

This Dixon notched NOS ferrule is the ferrule half of Dixon's external notched stem and ferrule system. This listing covers six ferrules in three stem sizes (40 mm, 50 mm and 75 mm), each for a hose outside diameter (OD) range from 48.8 mm to 96.4 mm (manufacturer-stated).
Dixon describes the stem as 316 stainless steel with a wrench flat and the ferrule as 304 stainless steel, and states that the assembly can be swaged or crimped on. You must buy a stem and the matching ferrule to make an assembly (manufacturer-stated).
Where this product is used
- Fitting a Dixon notched NOS hose tail (male NPT, or male BSP in the A-suffix stems) to hose by crimping or swaging (manufacturer-stated).
- Re-hosing: stock one stem and two ferrules to cover the same hose range with less inventory (manufacturer-stated).
Features
- 304 stainless steel notched ferrule; 316 stainless steel stem with wrench flat (manufacturer-stated)
- Stem can be removed from a damaged hose by cutting the ferrule away, then reused with a new ferrule (manufacturer-stated)
- Crimp or swage on, depending on hose OD (manufacturer-stated)
- Six ferrules covering hose OD from 48.8 mm to 96.4 mm
Common specifications
| Specification | Detail |
|---|---|
| Ferrule material | 304 stainless steel (manufacturer-stated) |
| Stem material | 316 stainless steel with wrench flat (manufacturer-stated) |
| Used with | Notched NOS stems RST...NOS (male NPT) and RST...NOSA (male BSP) |
| Stem sizes | 40, 50 and 75 mm |
Key specifications
| Dixon part number | Stem size (mm) | Hose OD | Male NPT stem | Male BSP stem |
|---|---|---|---|---|
| GAS2334NOS | 40 | 48.8 to 54.8 mm | RST150NOS | RST150NOSA |
| GAS2370NOS | 40 | 51.6 to 58.7 mm | RST150NOS | RST150NOSA |
| GAS2709NOS | 50 | 61.9 to 67.5 mm | RST200NOS | RST200NOSA |
| GAS2885NOS | 50 | 66.7 to 71.4 mm | RST200NOS | RST200NOSA |

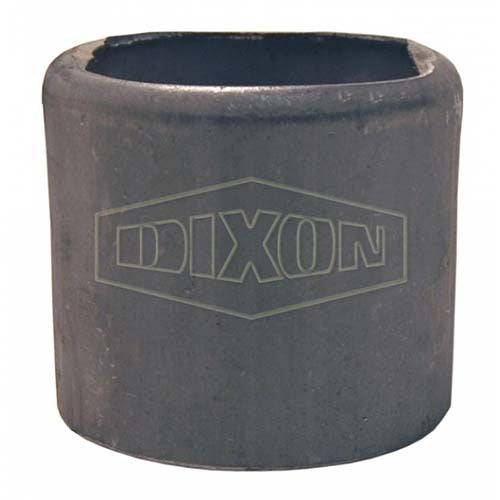

| GAS3760NOS | 75 | 86.9 to 93.3 mm | RST300NOS | RST300NOSA |
| GAS3885NOS | 75 | 93.7 to 96.4 mm | RST300NOS | RST300NOSA |
Dixon states: only use NOS hose tails with NOS ferrules. For hose OD of 52.4 mm and below the couplings are crimp only, and for 52.8 mm and above they can be crimped or swaged (manufacturer-stated). The notes do not cover hose OD between 52.4 mm and 52.8 mm. Dixon lists the same ferrule against both the male NPT and the male BSP stem.
Selecting the right option
Select by measured hose OD, not hose ID. GAS2334NOS (48.8 to 54.8 mm) and GAS2370NOS (51.6 to 58.7 mm) both cover hose around 52 mm, so check which suits your hose wall and assembly method. Use these ferrules only with NOS stems (manufacturer-stated), and do not mix them with other manufacturers' stems or ferrules.
Related products
Related Dixon products: Dixon EZ Boss-Lock Cam & Groove Notched Type C Ferrule Stainless Steel and Dixon Stainless Steel BSP Cam & Groove Type E Adaptor x Hose Shank.
