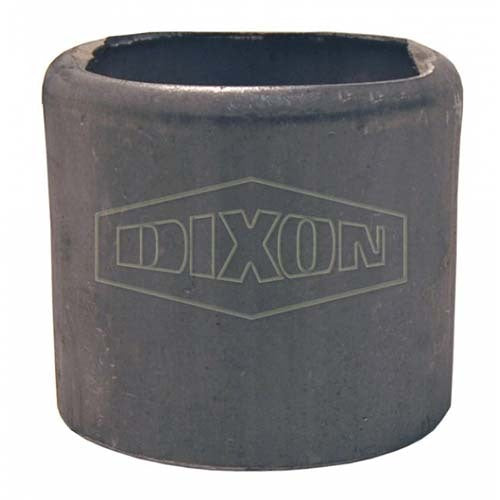

Dixon EZ Boss-Lock Cam & Groove Notched Type C Ferrule 62.71 - 68.26mm
Regular price
$69.57
Sale price
$69.57
Regular price
Inc. GST
Available
304 Stainless Steel construction handles the temperature, pressure and media of industrial duty. Safety notes. Dixon stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products. You must purchase a fitting and the matching ferrule to create an assembly. Dixon EZ Boss-Lock Cam & Groove Notched Type C Ferrule Stainless Steel Hose OD 49.21 - 55.56mm.
Key Specifications
| Hose ID | 1-1/2" (40 mm) / 2" (50 mm) / 3" (75 mm) / 4" (100 mm) |
| Hose OD | 49.21 - 55.56mm / 52.39 - 59.53mm / 62.71 - 68.26mm / 67.47 - 72.23mm / 88.11 - 94.46mm / 94.85 - 97.63mm / 117.48 - 120.25mm |
| Material | 304 Stainless Steel |
| Weight | 0.54 lb / 0.44 lb / 0.62 lb / 1.03 lb / 1.61 lb / 1.66 lb / 2.55 lb |
| Hose OD From | 1-60/64" (49.21 mm) / 2-4/64" (52.39 mm) / 2-30/64" (62.71 mm) / 2-42/64" (67.47 mm) / 3-30/64" (88.11 mm) / 3-47/64" (94.85 mm) / 4-40/64" (117.48 mm) |
| Hose OD To | 2-12/64" (55.56 mm) / 2-22/64" (59.53 mm) / 2-44/64" (68.26 mm) / 2-54/64" (72.23 mm) / 3-46/64" (94.46 mm) / 3-54/64" (97.63 mm) / 4-47/64" (120.25 mm) |
| Hose ID Size (mm) | 40 / 50 / 75 / 100 |
Where This Is Used
- EZ Boss-Lock Cam & Groove Notched Type C Ferrule Stainless Steel Hose OD 49.21 - 55.56mm.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
49.21 - 55.56mm
Model Number: GAS2334NO
-
52.39 - 59.53mm
Model Number: GAS2370NO
-
62.71 - 68.26mm
Model Number: GAS2709NO
-
67.47 - 72.23mm
Model Number: GAS2885NO
-
88.11 - 94.46mm
Model Number: GAS3760NO
-
94.85 - 97.63mm
Model Number: GAS3885NO
-
117.48 - 120.25mm
Model Number: GAS5010NO
