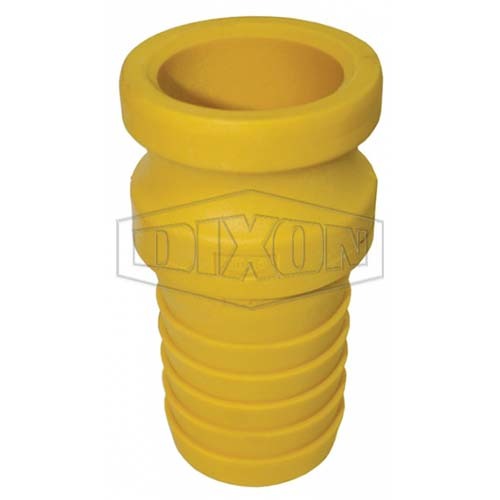

Dixon Nyglass camlock, 3/4" (20mm)

This Dixon camlock is an adaptor with a hose tail (hose shank) in 30% glass-filled nyglass. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it. It comes in 8 sizes, from 1/2" (15mm) to 4" (100mm).

The body is nyglass, 30% glass filled. An adaptor carries no seal of its own: the standard seal for this material, EPDM, sits in the mating coupler, and the pressure rating is based on the seal of the mating part. The other sizes are rated at 125 PSI for 15 and 20mm; 100 PSI for 32, 40 and 50mm; 60 PSI for 75mm; 50 PSI for 100mm. Pressure ratings are based on mating Dixon fittings at an ambient temperature of 21°C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions.

Where this product is used

• Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks
• Fitting an adaptor to the end of a hose, so the hose can be connected to a coupler on a tank, a pump or another hose
• Hose and pipework where the nyglass body and the EPDM seal suit the media, check both against your media before ordering

Features

• Type E: adaptor x hose tail
• Body: nyglass, 30% glass filled
• Seal fitted in the mating coupler: EPDM, pressure rating is based on the seal of the mating part
• Interchanges with products made to commercial item description A-A-59326D

Key specifications

Choosing the right option

Type E has a hose tail, so pick the size to suit your hose and secure the hose with a clamp or band suited to it; the working pressure of the assembly also depends on the hose and the clamp. It connects to a Type B, C or D coupler of the same size. Do not mix nyglass fittings with aluminium fittings. Check your media against the glass-filled body and the EPDM seal; the polypropylene and nyglass ratings are lower than the metal ones and fall as the size goes up. Dust caps and dust plugs must not be used in any pressure application.

Related Dixon products: Dixon Nyglass Cam & Groove Type B Coupler x Male BSP, Dixon Nyglass Cam & Groove Type C Coupler x Hose Shank and Dixon Cam & Groove Type E Adaptor x Hose Shank Polypropylene.

Dust caps and plugs for the unused end: Dixon Nyglass Cam & Groove Type DC Dust Cap.
