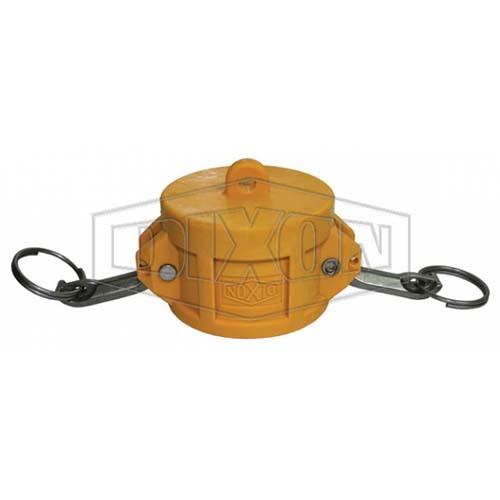

Dixon Nyglass Type DC dust cap, 50mm (2")
Available
This Dixon Nyglass dust cap closes off a male cam and groove adaptor. It is a Type DC cap, which locks onto the adaptor with its cam arms. The Nyglass range comes in 7 sizes, from 20mm (3/4") to 100mm (4").
The body is Nyglass, 30% glass filled. Polypropylene and Nyglass should not be mixed with aluminium fittings. Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons.
Where this product is used
- Closing off a male camlock adaptor on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile
- Plastic cover for Nyglass camlock fittings, where the hose and tank fittings are also plastic
- Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle
Features
- Type DC dust cap for cam and groove couplings, 7 sizes from 20mm (3/4") to 100mm (4")
- Body: Nyglass, 30% glass filled
- Not for use in pressure applications
- Type: Type DC dust cap
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Type | Type DC dust cap |
| Body material | Nyglass, 30% glass filled |
| Sizes | 20mm (3/4"), 25mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50mm (2"), 75mm (3"), 100mm (4") |
| Pressure use | Not for use in pressure applications |
Choosing the right option
Choose the size from the camlock fitting it will close: a dust cap is sized to match the coupling size, so a 50mm dust cap goes with a 50mm male adaptor. Match the body material to the fitting as well. Do not mix this plastic dust cap with aluminium fittings.
Related Dixon products: Dixon Nyglass Cam & Groove Type DP Dust Plug, Dixon Stainless Steel Standard BSP Cam & Groove Type DC Dust Cap and Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DC Dust Cap.
| Option | Part number | SKU |
|---|---|---|
| 20 | NGH075A | A0070771 |
| 25 | NGH100A | A0070772 |
| 32 | NGH125A | A0070773 |
| 40 | NGH150A | A0070774 |
| 50 | NGH200A | A0070775 |
| 75 | NGH300A | A0070776 |
| 100 | NGH400A | A0070777 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Nyglass Cam & Groove Type DC Dust Cap: 50
SKU: A0070775 | Model: NGH200A
Dixon NGH200A: 50mm (2") Nyglass Type DC cam and groove dust cap. Body: Nyglass, 30% glass filled, Pressure use: Not for use in pressure applications.
