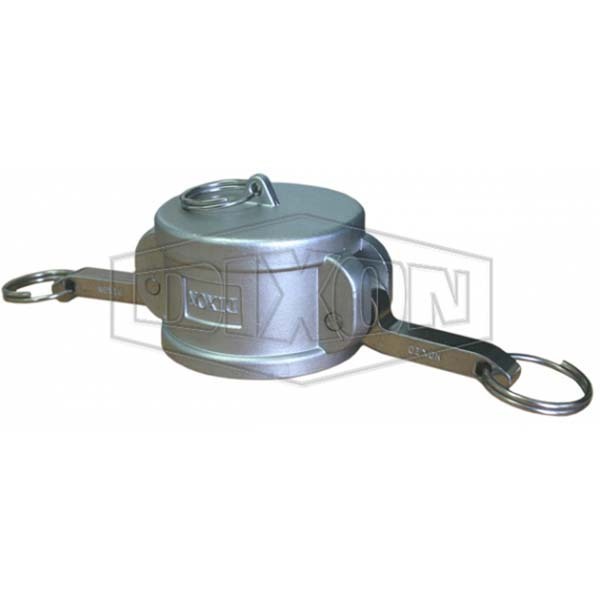

Dixon Aluminium Die Cast Type DC dust cap, 20mm (3/4")

This Dixon aluminium die cast dust cap closes off a male cam and groove adaptor. It is a Type DC cap, which locks onto the adaptor with its cam arms. The aluminium die cast range comes in 11 sizes, from 15mm (1/2") to 150mm (6").

The body is die-cast aluminium. Couplings made by the die-cast process must not be welded. Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons.

Where this product is used

• Closing off a male camlock adaptor on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile
• Lightweight cover for aluminium camlock fittings on hose and tank outlets
• Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle

Features

• Type DC dust cap for cam and groove couplings, 11 sizes from 15mm (1/2") to 150mm (6")
• Body: Die-cast aluminium
• Not for use in pressure applications
• Type: Type DC dust cap

Key specifications

Choosing the right option

Choose the size from the camlock fitting it will close: a dust cap is sized to match the coupling size, so a 50mm dust cap goes with a 50mm male adaptor. Match the body material to the fitting as well. No standard exists for the 15mm (1/2") and 200mm (8") camlock sizes and that these sizes generally do not interchange with other manufacturers.

Related Dixon products: Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DP Dust Plug, Dixon Stainless Steel Standard BSP Cam & Groove Type DC Dust Cap and Dixon Brass Standard BSP Cam & Groove Type DC Dust Cap.
