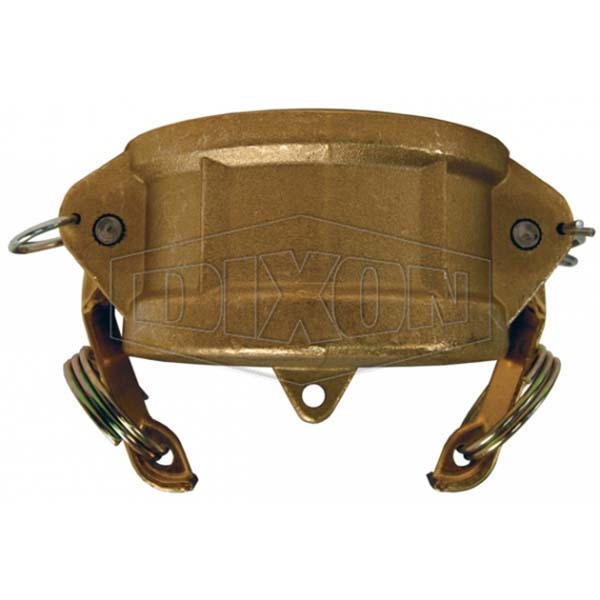

Dixon Brass Type DC dust cap, 32mm (1-1/4")

This Dixon brass dust cap closes off a male cam and groove adaptor. It is a Type DC cap, which locks onto the adaptor with its cam arms. The brass range comes in 8 sizes, from 20mm (3/4") to 100mm (4").

The body is brass, grade UNS C38500 to ASTM-B455. Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons.

Where this product is used

• Closing off a male camlock adaptor on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile
• Brass cover for brass camlock fittings on hose and tank outlets
• Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle

Features

• Type DC dust cap for cam and groove couplings, 8 sizes from 20mm (3/4") to 100mm (4")
• Body: Brass, grade UNS C38500 to ASTM-B455
• Not for use in pressure applications
• Type: Type DC dust cap

Key specifications

Choosing the right option

Choose the size from the camlock fitting it will close: a dust cap is sized to match the coupling size, so a 50mm dust cap goes with a 50mm male adaptor. Match the body material to the fitting as well.

Related Dixon products: Dixon Brass Standard BSP Cam & Groove Type DP Dust Plug, Dixon Stainless Steel Standard BSP Cam & Groove Type DC Dust Cap and Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DC Dust Cap.
