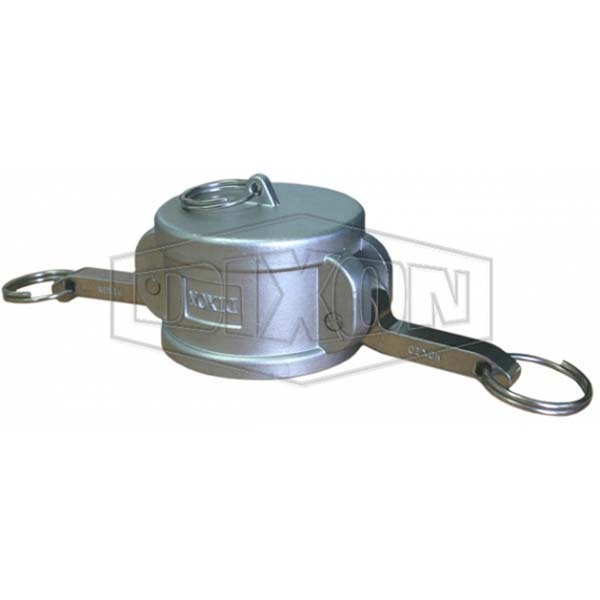

Dixon 15mm Stainless Steel BSP Cam & Groove Type DC Dust Cap SS050DC
Regular price
$29.34
Sale price
$29.34
Regular price
Inc. GST
Available
Stainless Steel construction handles the temperature, pressure and media of industrial duty. Seal: Nitrile Rubber. The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more. Designed for use with liquids. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
Key Specifications
| Size | 11 variants available |
| Material | Stainless Steel |
| Seal | Nitrile Rubber |
| Weight (kg) | 0.19 / 0.28 / 0.45 / 0.51 / 0.69 / 0.8 / 1.68 / 4.13 |
| Adaptor Length (B) mm | 33 / 38 / 42 / 45 / 51 / 52 / 58 / 65 |
| Overall Length (A) mm | 44 / 51 / 58 / 61 / 63 / 69.5 / 72 / 80 |
| Distance Across Flat (C) mm | 33 / 38 / 42 / 45 / 51 / 52 / 58 / 65 |
Where This Is Used
- The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more.
- Designed for use with liquids.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
15
Model Number: SS050DC
-
20
Model Number: SS075DC
-
25
Model Number: SS100DC
-
32
Model Number: SS125DC
-
40
Model Number: SS150DC
-
50
Model Number: SS200DC
-
65
Model Number: SS250DC
-
75
Model Number: SS300DC
-
100
Model Number: SS400DC
-
125
Model Number: SS500DC
-
150
Model Number: SS600DC
