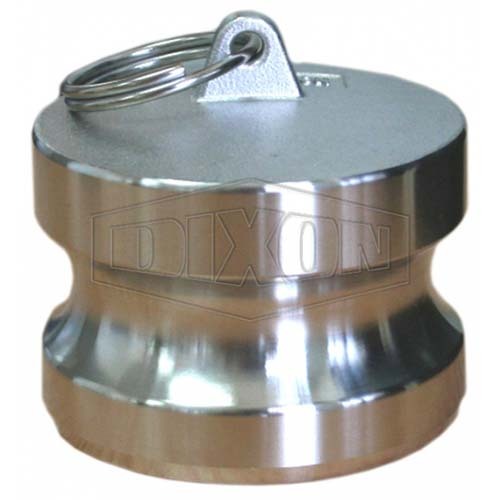

Dixon Stainless Steel Type DP dust plug, 25mm (1")

This Dixon stainless steel dust plug closes off a female cam and groove coupler. It is a Type DP plug, which is held in by the cam arms of the coupler. The stainless steel range comes in 11 sizes, from 15mm (1/2") to 150mm (6").

The body is stainless steel grade CF8M (316 equivalent) to ASTM-A351. Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons.

Where this product is used

• Closing off a female camlock coupler on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile
• Stainless steel cover for stainless steel camlock fittings on hose and tank outlets
• Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle

Features

• Type DP dust plug for cam and groove couplings, 11 sizes from 15mm (1/2") to 150mm (6")
• Body: Stainless steel, grade CF8M (316 equivalent) to ASTM-A351
• Not for use in pressure applications
• Type: Type DP dust plug

Key specifications

Choosing the right option

Choose the size from the camlock fitting it will close: a dust plug is sized to match the coupling size, so a 50mm dust plug goes with a 50mm female coupler. Match the body material to the fitting as well. No standard exists for the 15mm (1/2") and 200mm (8") camlock sizes and that these sizes generally do not interchange with other manufacturers.

Related Dixon products: Dixon Stainless Steel Standard BSP Cam & Groove Type DC Dust Cap, Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DP Dust Plug and Dixon Brass Standard BSP Cam & Groove Type DP Dust Plug.
