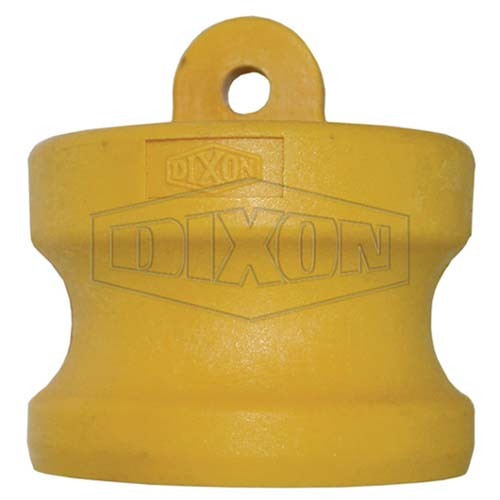

Dixon Nyglass Type DP dust plug, 20mm (3/4")
Available
This Dixon Nyglass dust plug closes off a female cam and groove coupler. It is a Type DP plug, which is held in by the cam arms of the coupler. The Nyglass range comes in 7 sizes, from 20mm (3/4") to 100mm (4").
The body is Nyglass, 30% glass filled. Polypropylene and Nyglass should not be mixed with aluminium fittings. Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons.
Where this product is used
- Closing off a female camlock coupler on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile
- Plastic cover for Nyglass camlock fittings, where the hose and tank fittings are also plastic
- Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle
Features
- Type DP dust plug for cam and groove couplings, 7 sizes from 20mm (3/4") to 100mm (4")
- Body: Nyglass, 30% glass filled
- Not for use in pressure applications
- Type: Type DP dust plug
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Type | Type DP dust plug |
| Body material | Nyglass, 30% glass filled |
| Sizes | 20mm (3/4"), 25mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50mm (2"), 75mm (3"), 100mm (4") |
| Pressure use | Not for use in pressure applications |
Choosing the right option
Choose the size from the camlock fitting it will close: a dust plug is sized to match the coupling size, so a 50mm dust plug goes with a 50mm female coupler. Match the body material to the fitting as well. Do not mix this plastic dust plug with aluminium fittings.
Related Dixon products: Dixon Nyglass Cam & Groove Type DC Dust Cap, Dixon Stainless Steel Standard BSP Cam & Groove Type DP Dust Plug and Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DP Dust Plug.
| Option | Part number | SKU |
|---|---|---|
| 20 | NGP075A | A0070778 |
| 25 | NGP100A | A0070779 |
| 32 | NGP125A | A0070780 |
| 40 | NGP150A | A0070781 |
| 50 | NGP200A | A0070782 |
| 75 | NGP300A | A0070783 |
| 100 | NGP400A | A0070784 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Nyglass Cam & Groove Type DP Dust Plug: 20
SKU: A0070778 | Model: NGP075A
Dixon NGP075A: 20mm (3/4") Nyglass Type DP cam and groove dust plug. Body: Nyglass, 30% glass filled, Pressure use: Not for use in pressure applications.
