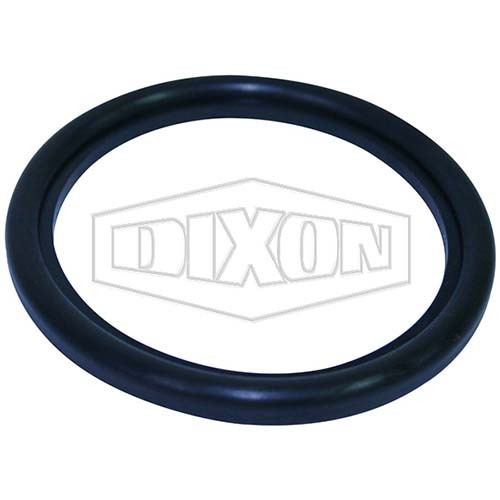

Dixon CIP Buna-N RJT O-ring gasket, 1"
Out of stock
This Dixon Buna-N (NBR) gasket is available in the CIP group of Dixon's BSM (RJT) O-rings. The CIP O-rings are a separate range from the standard RJT O-rings, with their own part numbers (the -CIP suffix) and their own dimensions. The CIP Buna-N O-ring from 1 comes in to 4".
Where this product is used
- Replacement O-ring seal for Dixon CIP RJT hygienic unions in the matching size
- Union joints where a CIP-series Buna-N seal suits the product and cleaning chemicals
Features
- Material: Buna-N (nitrile, NBR)
- CIP series O-ring, part numbers ending -CIP
- Dimensions A and B for every size
- Series: CIP O-rings (part numbers ending -CIP)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Buna-N (nitrile, NBR) |
| Series | CIP O-rings (part numbers ending -CIP) |
| Sizes | 1", 1-1/2", 2", 2-1/2", 3", 4" |
Choosing the right option
Choose Buna-N only if it suits your product and cleaning chemicals; the EPDM CIP O-ring is sold separately.
Related Dixon products: Dixon CIP EPDM RJT O Ring Gasket, Dixon Black Buna-N RJT Gasket Red Dot and Dixon 316 Stainless Steel RJT-14 CIP Welding Liner.
| Option | Part number | SKU |
|---|---|---|
| 1" | 40MP-U100RJT-CIP | A0068143 |
| 1-1/2" | 40MP-U150RJT-CIP | A0068146 |
| 2" | 40MP-U200RJT-CIP | A0068149 |
| 2-1/2" | 40MP-U250RJT-CIP | A0068152 |
| 3" | 40MP-U300RJT-CIP | A0068155 |
| 4" | 40MP-U400RJT-CIP | A0068158 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon CIP Buna-N RJT O Ring Gasket: 1"
SKU: A0068143 | Model: 40MP-U100RJT-CIP
Dixon 40MP-U100RJT-CIP: 1" CIP Buna-N RJT O-ring gasket, Buna-N (nitrile, NBR). Dimension A: 22.2mm. Dimension B: 7.0mm.
