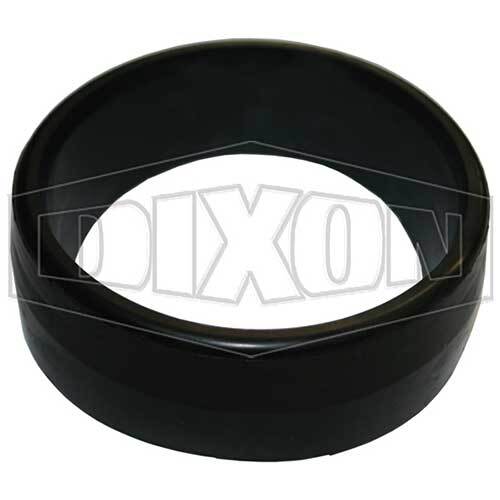

Dixon GKCH200NBR 2" hose ID Crimp Cup Seal Buna N

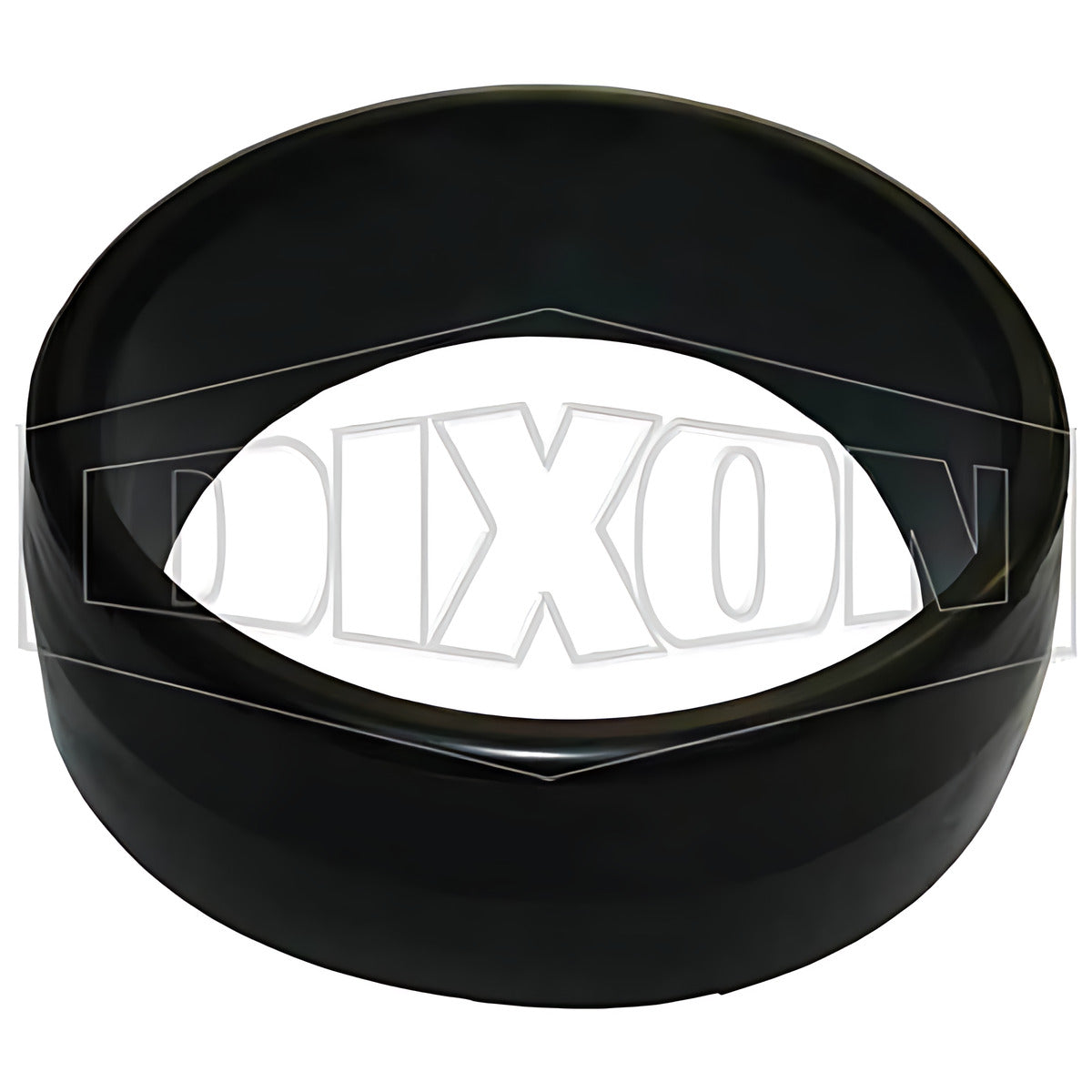

This Dixon crimp cup seal is made from nitrile Buna. Dixon lists it in the Composite Hose & Fittings section, next to the scroll tail crimp stems and crimp ferrules, in seven sizes for hose from 1-1/2" (GKCH150NBR, 40 mm) to 8" (GKCH800NBR, 200 mm) (manufacturer-stated).

The same cup seal is also listed in FKM, as GKCH150V to GKCH400V for 40 to 100 mm. Dixon's catalogue gives no pressure or temperature rating for the seal, so check the material against your media and confirm any limits with us.

Where this product is used

• Crimped composite hose assemblies, as listed with Dixon's scroll tail crimp stems and crimp ferrules (manufacturer-stated).
• Larger hose sizes: nitrile Buna is the only material listed for 6" and 8".

Features

• Nitrile Buna crimp cup seal (manufacturer-stated)
• Seven sizes from 1-1/2" to 8" hose ID (40 to 200 mm) (manufacturer-stated)
• Listed with the scroll tail crimp stems and crimp ferrules (manufacturer-stated)

Common specifications

Key specifications

Selecting the right option

Choose the seal by hose ID and then by seal material for your media. Nitrile Buna is listed from 1-1/2" to 8", while the FKM version (linked below) is listed from 1-1/2" to 4".

Related products

Related Dixon products: Dixon Crimp Cup Seal FKM and Dixon Aluminium Scroll Tail Camlock Type C Coupler x Hose Shank W/ Ferrule.
