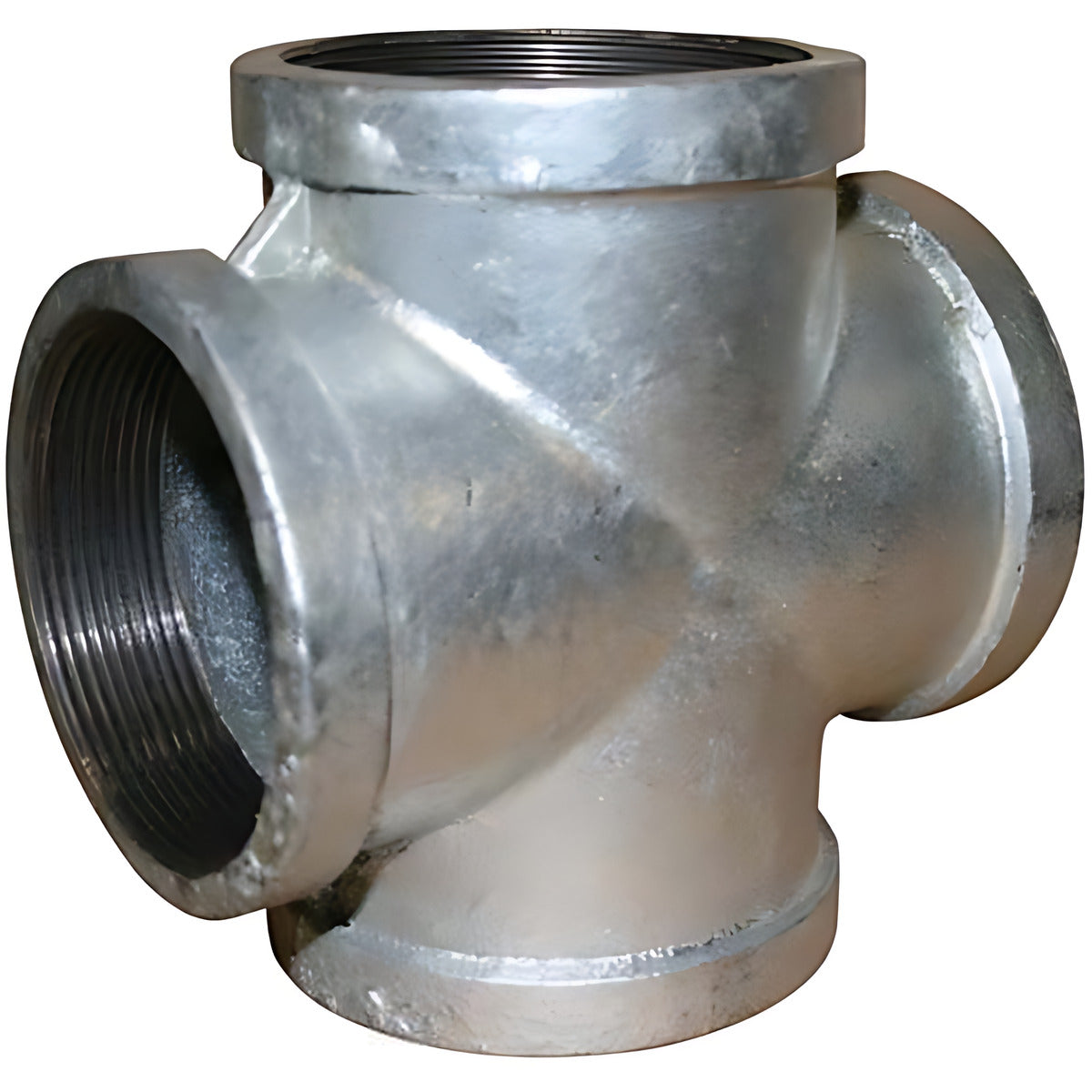

Dixon Four-way cross, 1/2" (15mm)
Available
This Dixon cross is a four-way BSP screwed fitting in galvanised malleable iron, used where four pipes meet at one point. The galvanised malleable iron BSP fittings are ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461, with ISO 7-1 pipe threads, for general low-pressure air and water at a working pressure of 150 PSI (about 10 bar). Dixon also offers a 316 stainless steel cross in 1/2" only (SS16CR015).
Where this product is used
- General low-pressure air and water pipework
- Junctions where four lines meet at one point, such as a through line with a branch leaving on each side
Features
- Four-way cross with BSP threads
- End connection: BSP screwed
- Body: ISO 5922 malleable cast iron, hot dip galvanised to ISO 1461
- Working pressure: 150 PSI (about 10 bar), for general low-pressure air and water
- Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| End connection | BSP screwed |
| Body material | ISO 5922 malleable cast iron |
| Coating | Hot dip galvanised, ISO 1461 |
| Thread standard | ISO 7-1 pipe threads (BSP) |
| Design | Generally in accordance with AS3673, slight variations may occur where the manufacturer's dimensions are used |
| Working pressure | 150 PSI (about 10 bar) |
| Application | General low-pressure air and water |
Choosing the right option
BSP threads do not mate with NPT or metric threads, so confirm the thread on every mating part before you order.
Related Dixon fittings: Dixon Equal Tee BSP Female Galvanised Malleable Iron, Dixon 90° Screwed Elbow F/F Galvanised Malleable Iron and Dixon Cap BSP Screwed Galvanised Malleable Iron.
| Option | Part number | SKU |
|---|---|---|
| 1/2 | FMG-CRO-15 | A0069561 |
| 1 | FMG-CRO-25 | A0069563 |
| 1-1/4 | FMG-CRO-32 | A0069564 |
| 1-1/2 | FMG-CRO-40 | A0069565 |
| 2 | FMG-CRO-50 | A0069566 |
| 2-1/2 | FMG-CRO-65 | A0069567 |
| 3/4 | FMG-CRO-20 | A0069562 |
| 3 | FMG-CRO-80 | A0069568 |
| 4 | FMG-CRO-100 | A0069560 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Cross BSP Screwed Galvanised Malleable Iron: 1/2
SKU: A0069561 | Model: FMG-CRO-15
Dixon FMG-CRO-15: Four-way cross, 1/2" (15mm).
