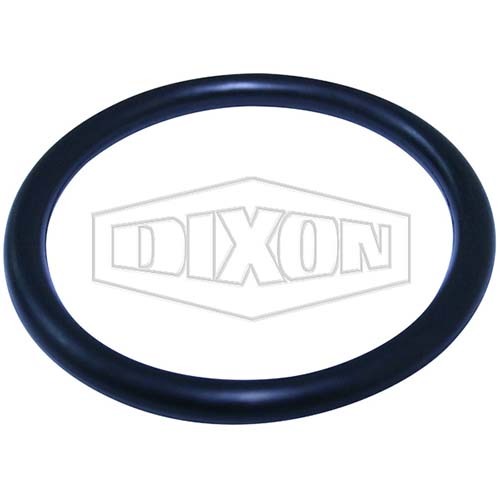

Dixon EPDM RJT (BSM) O-ring gasket, 1-1/2"
Available
This Dixon EPDM gasket is the O-ring seal for BSM (RJT) hygienic unions. It comes in its BSM (RJT) O-rings group, which is associated with RJT (BSM) AS1528.2 - 2001 screwed couplings.
Where this product is used
- Replacement O-ring seal for BSM (RJT) hygienic unions in the matching size
- Union joints between RJT liners and males where an EPDM seal suits the product and cleaning chemicals
Features
- Material: EPDM
- Used with BSM (RJT) screwed couplings to AS1528.2 - 2001
- Inside diameter and width for the 1" to 4" sizes
- Part number series: 40MP-E...RJT
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | EPDM |
| Used with | BSM (RJT) hygienic unions (RJT (BSM) AS1528.2 - 2001) |
| Sizes | 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
Choosing the right option
Match the O-ring to the union size, and check that your union is a BSM (RJT) type with the standard liner and male: Dixon's CIP flat-face unions and its NZ RJT unions use different O-rings and gaskets.
That table stops at 4", so the 6" size has no dimensions.
Related Dixon products: Dixon Black Buna-N RJT Gasket Red Dot, Dixon CIP EPDM RJT O Ring Gasket and Dixon 316 Stainless Steel RJT-14 CIP Welding Liner.
| Option | Part number | SKU |
|---|---|---|
| 1" | 40MP-E100RJT | A0068071 |
| 1-1/2" | 40MP-E150RJT | A0068077 |
| 2" | 40MP-E200RJT | A0068083 |
| 2-1/2" | 40MP-E250RJT | A0068089 |
| 3" | 40MP-E300RJT | A0068095 |
| 4" | 40MP-E400RJT | A0068101 |
| 6" | 40MP-E600RJT | A0068106 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon EPDM RJT O Ring Gasket: 1-1/2"
SKU: A0068077 | Model: 40MP-E150RJT
Dixon 40MP-E150RJT: 1-1/2" EPDM RJT O-ring gasket, EPDM. Inside diameter: 39.62mm. Width: 6.35mm.
