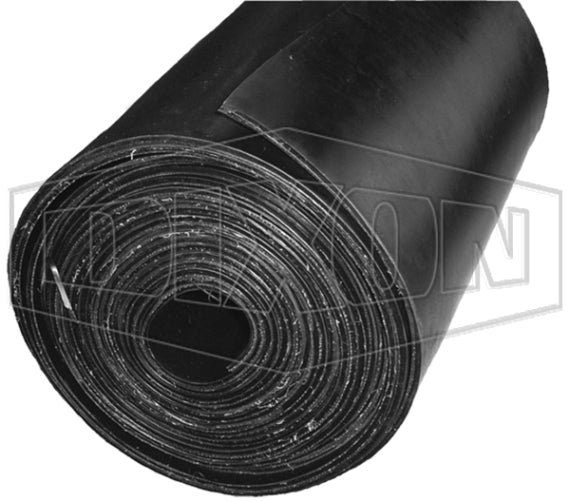

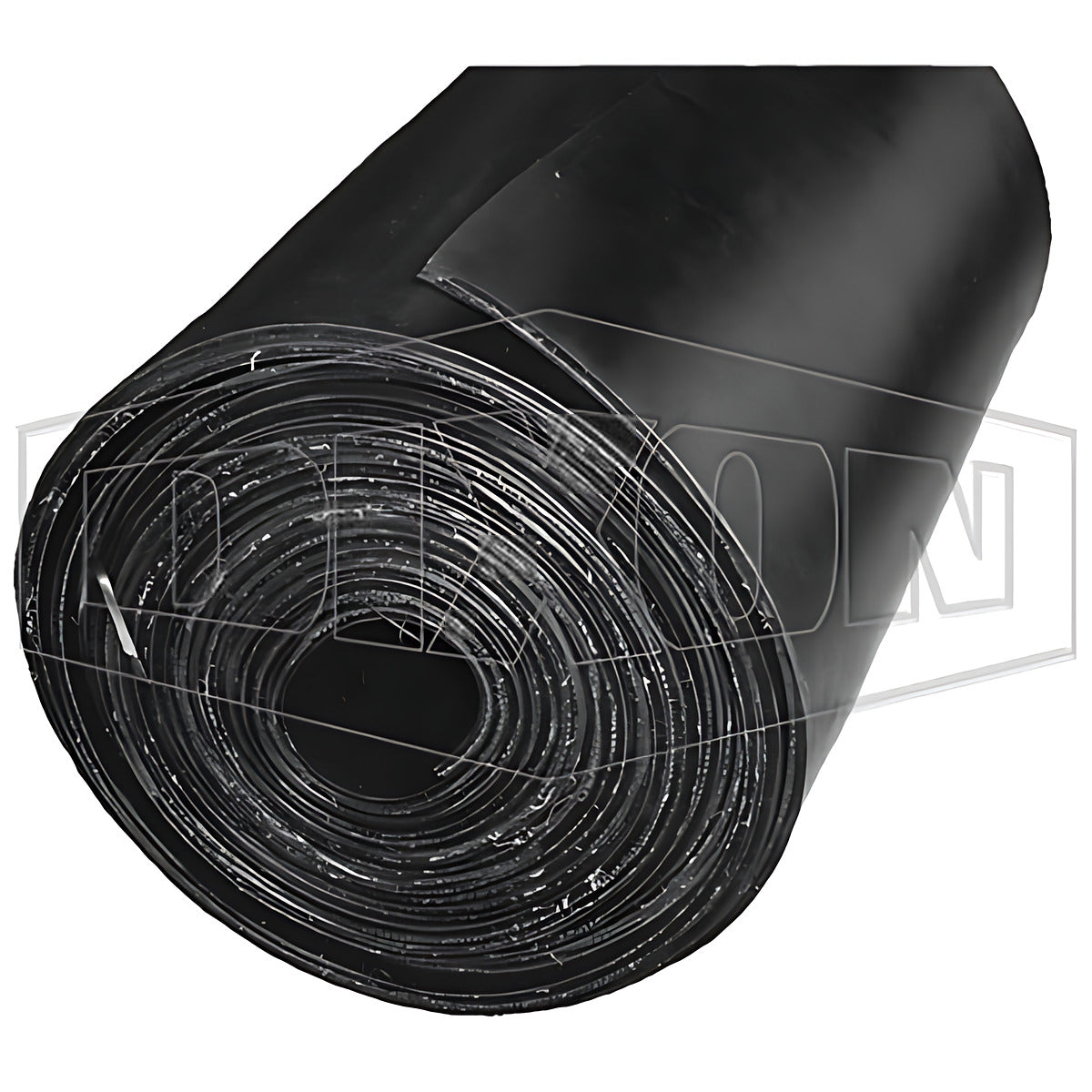

Dixon NIR0302 Insertion Rubber Handy Roll 3 mm x 1200 mm x 2 m
Available
Dixon's insertion rubber handy rolls are shorter 2 m and 5 m lengths of its insertion rubber, for jobs that do not need a full 10 m roll (manufacturer-stated). The store lists them in 3, 6 and 9 mm thicknesses.
Dixon lists the material as styrene butadiene rubber (SBR) with a nylon ply, Shore A 65 ± 5 hardness, and a temperature range of -20°C to 60°C (manufacturer-stated). Rolls are 1200 mm wide, except the 9 mm rolls, which Dixon lists at 1220 mm.
Where this product is used
- Matting, packing, gaskets, dust curtains and mud flaps (manufacturer-stated).
- Small jobs where a 2 m or 5 m length is enough.
Features
- SBR rubber with nylon ply reinforcement for higher tear strength (manufacturer-stated)
- Shore A 65 ± 5; temperature range -20°C to 60°C (manufacturer-stated)
- 2 m and 5 m rolls in 3, 6 and 9 mm thicknesses (manufacturer-stated)
- 1200 mm wide (1220 mm for the 9 mm rolls) (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | SBR |
| Reinforcement | Nylon ply |
| Hardness | Shore A 65 ± 5 |
| Temperature | -20°C to 60°C |
| Thicknesses | 3, 6 and 9 mm |
| Roll lengths | 2 m and 5 m |
| Width | 1200 mm (1220 mm for 9 mm rolls) |
Key specifications
| Dixon part number | Thickness (mm) | Roll length (m) | Width (mm) | Ply |
|---|---|---|---|---|
| NIR0302 | 3 | 2 | 1200 | |
| NIR0305 | 3 | 5 | 1200 | |
| NIR0602 | 6 | 2 | 1200 | 2 |
| NIR0605 | 6 | 5 | 1200 | 2 |
| NIR0902 | 9 | 2 | 1220 | 2 |
| NIR0905 | 9 | 5 | 1220 | 2 |
The ply for the 3 mm rolls is left blank because Dixon's documents and the store do not agree on it. Dixon's main catalogue lists the matching 2 m and 5 m codes (NIR0302, NIR0305) at 3.2 mm, while the handy roll sheet gives 3.0 mm.
Selecting the right option
Choose the thickness from the job and the length from how much you need to cut. For full 10 m rolls, or the 1.5 and 10 mm thicknesses, see the natural insertion sheet linked below.
Related products
Related Dixon sheet rubber: Dixon Natural Insertion Industrial Sheet Rubber, Dixon Neoprene Insertion Industrial Sheet Rubber 6 x 1200mm x 10m Black and Dixon Skirting Industrial Sheet Rubber.
