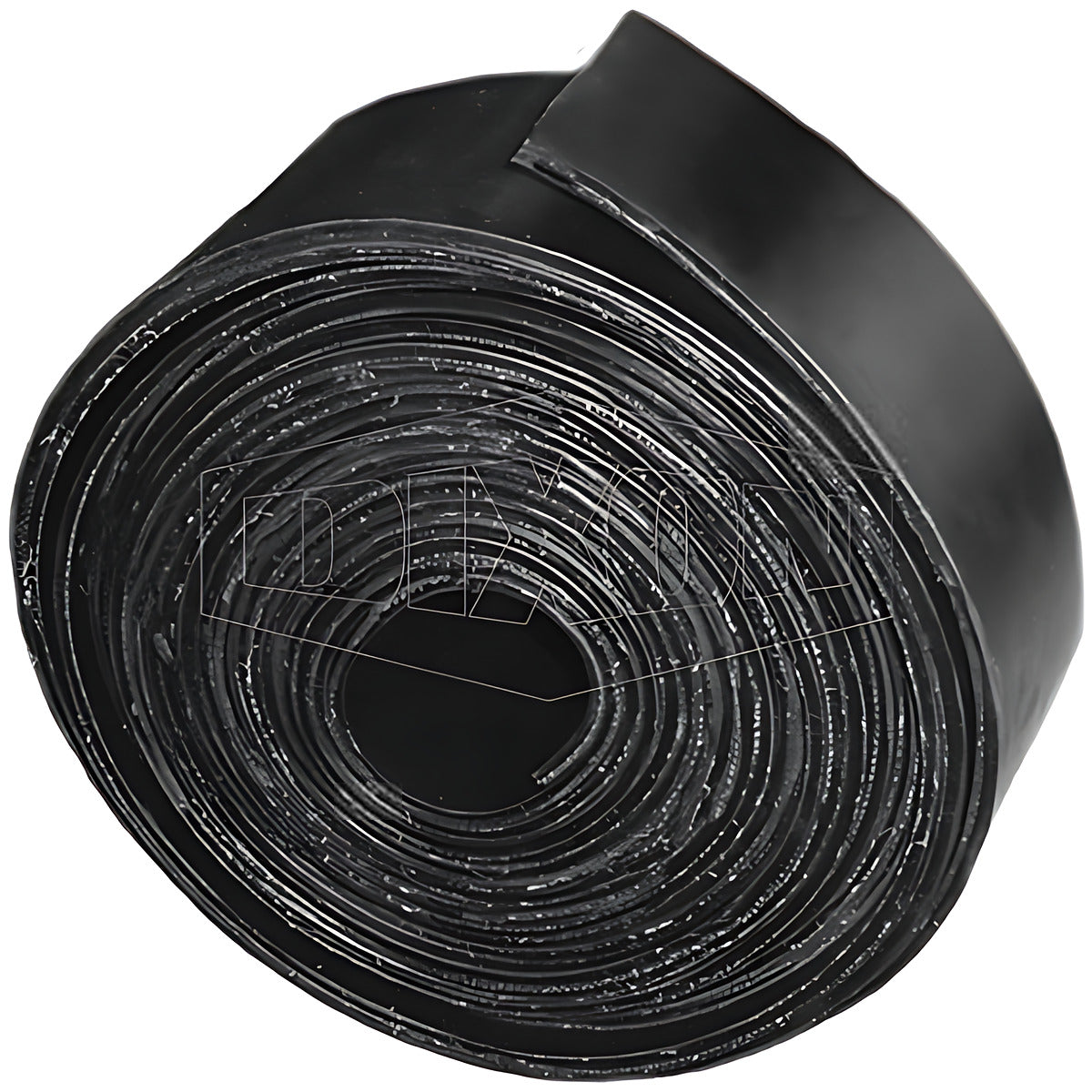

Dixon SIR100100 Skirting Sheet Rubber 10 x 100 mm x 30 m
Available
This Dixon skirting sheet rubber is an SBR rubber strip sold in 30 m rolls, used on the sides of conveyor belts to keep material on the belt. The store lists four sizes, from 10 x 100 mm to 12 x 300 mm.
Dixon gives these figures for its skirting rubber: tensile strength 40 ± 5 kg/cm², hardness Shore A 65 ± 5, specific gravity 1.5 ± 0.05, minimum elongation 250%, and a temperature range of -20°C to 60°C (manufacturer-stated).
Where this product is used
- Conveyor belt skirting, to prevent loss of material travelling on the conveyor (manufacturer-stated).
- Skirting along the sides of a conveyor belt, in the width and thickness that suit the belt and chute.
Features
- SBR skirting rubber in 30 m rolls (manufacturer-stated)
- Tensile strength 40 ± 5 kg/cm²; hardness Shore A 65 ± 5 (manufacturer-stated)
- Temperature range -20°C to 60°C (manufacturer-stated)
- Sizes 10 x 100, 12 x 150, 12 x 250 and 12 x 300 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | SBR |
| Roll length | 30 m |
| Tensile strength | 40 ± 5 kg/cm² |
| Hardness | Shore A 65 ± 5 |
| Specific gravity | 1.5 ± 0.05 |
| Elongation | Minimum 250% |
| Temperature | -20°C to 60°C |
| Sizes in this listing | 10 x 100, 12 x 150, 12 x 250 and 12 x 300 mm |
Key specifications
| Dixon part number | Thickness (mm) | Width (mm) | Roll length (m) | Catalogue weight (kg per 30 m roll) |
|---|---|---|---|---|
| SIR100100 | 10 | 100 | 30 | 45.00 |
| SIR120150 | 12 | 150 | 30 | 81.00 |
| SIR120250 | 12 | 250 | 30 | |
| SIR120300 | 12 | 300 | 30 | 162.00 |
Weights are the figures in Dixon's catalogue. SIR120250 (12 x 250 mm) has no row in the catalogue, so no catalogue weight is shown for it. Thickness and length come from the store's listing for each part number.
Selecting the right option
Choose the width to cover the gap between the chute and the belt, and the thickness to suit how hard the skirt will be worn. The catalogue lists many more widths and thicknesses than these four, so ask us if you need a size that is not listed here.
