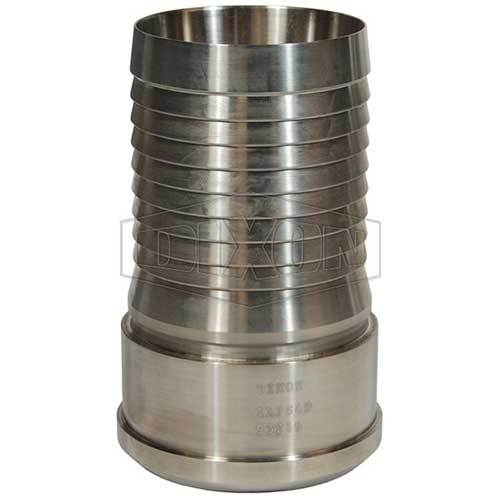

Dixon IXP24-1 Internal Expansion Stem Bevelled End
Out of stock
This Dixon Holedall internal expansion stem is carbon steel with a bevelled end that is welded to pipe. The stem sits inside the hose and is held by an internally expanded ferrule, which Dixon recommends for concrete placement, plaster and grout, food, air and pharmaceutical hose and wherever flow capacity matters (manufacturer-stated). Five part numbers are listed: IXP24-1, IXP32-1, IXP40-1, IXP40-2 and IXP48-1.
IXP40-1 and IXP40-2 are for the same hose ID and differ in pipe OD, at 73 mm and 76 mm in Dixon's catalogue. Dixon's working pressure chart does not list the IXP style, so contact Dixon for the working pressure of these stems. Dixon states that Holedall stems and ferrules are designed to be used together as a coupling system and says not to use other manufacturers' stems or ferrules, for safety reasons. A Holedall internally expanded coupling needs strict adherence to the ferrule OD range for each hose end (manufacturer-stated).
Where this product is used
- Welding a Holedall hose end to pipe or a vessel connection on concrete placement, food, air and similar hose (manufacturer-stated).
- Hose ends where the pipe OD matters: IXP40-1 suits 73 mm pipe and IXP40-2 suits 76 mm pipe (per Dixon catalogue).
Features
- Carbon steel internal expansion stem with bevelled weld end (manufacturer-stated)
- Works with Holedall IXF internal expansion ferrules (manufacturer-stated)
- IXP40-1 pipe OD 73 mm; IXP40-2 pipe OD 76 mm (manufacturer-stated)
- One expansion tool is needed for each hose ID (manufacturer-stated)
- Not for steam service at any pressure (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Carbon steel |
| End connection | Bevelled weld end |
| Working pressure | Contact Dixon (not listed in the Holedall pressure chart) |
| Steam | Not for steam service at any pressure |
Key specifications
| Dixon part number | Hose ID (mm, per Dixon catalogue) | Hose ID (inch, per Dixon catalogue) | Pipe OD (mm) |
|---|---|---|---|
| IXP24-1 | 40 | 1-1/2" | - |
| IXP32-1 | 50 | 2" | - |
| IXP40-1 | 65 | 2-1/2" | 73 |
| IXP40-2 | 65 | 2-1/2" | 76 |
| IXP48-1 | 75 | 3" | - |
Hose IDs are the figures in Dixon's Holedall catalogue. The store size options for these five part numbers do not match the catalogue, so check the hose ID against this table and ask us if you are unsure.
Selecting the right option
Order the stem by the hose inside diameter and the ferrule by the measured hose outside diameter; Dixon recommends a diameter tape for that measurement (manufacturer-stated). One expansion tool is needed for each hose ID. Holedall couplings are not for steam at any pressure, and Dixon lists them as unsuitable for cable-reinforced high-pressure hose and 4-braid or 6-braid wire hydraulic hose (manufacturer-stated). Dixon recommends testing each hose assembly to 1-1/2 times its working pressure for 15 minutes without leakage or coupling movement (manufacturer-stated). Confirm the pipe OD for IXP40-1 (73 mm) and IXP40-2 (76 mm) before you order.
Related products
Related Dixon products: Dixon Internal Expansion Stem BSP Male Pipe End and Dixon Internal Expansion Stem Grooved End Stem.
