Dixon Internal Expansion Stem BSP Male Pipe End1

Dixon IXM16A 25mm Internal Expansion Stem BSP Male Pipe End

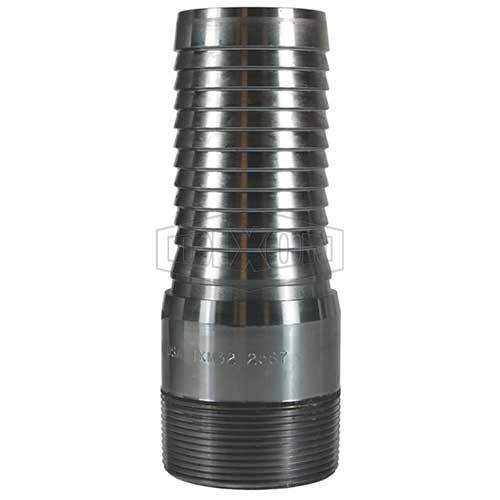

Dixon IXM20A 32mm Internal Expansion Stem BSP Male Pipe End

Dixon IXM24A 40mm Internal Expansion Stem BSP Male Pipe End

Dixon IXM32A 50mm Internal Expansion Stem BSP Male Pipe End

Dixon IXM40A 65mm Internal Expansion Stem BSP Male Pipe End

Dixon IXM48A 75mm Internal Expansion Stem BSP Male Pipe End

Description +

Applications

Recommended for concrete placement; grout and plaster; food; dairy; pharmaceutical as well as other applications where increased flow capacity is important.

Use

For use with Internal Expansion Ferrules

Safety notes

Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances; for safety reasons; do not use other manufacturer's stems or ferrules with Dixon Holedall products.
Do not use a wrench or vice on ferrule
Holedall couplings; regardless of coupling style; are never to be used for steam service at any pressure.
Holedall fittings are not to be used with cable reinforced high-pressure hose; 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
Internally Expanded Holedall Couplings are not to be used with plastic lined chemical hose.
Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Maximum pressure rating recommendations are given at 70°F/ 21°C.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Dixon Internal Expansion Stem BSP Male Pipe End

SKU: A0132131

Type: Internal Expansion Stem

$566.76

Inc. GST

Out of stock

The Dixon Internal Expansion Stem BSP Male Pipe End by Dixon is an Internal Expansion Stem for Hose Fittings & Couplings. It provides increased flow capacity and is suitable for concrete placement and for use with Internal Expansion Ferrules.
