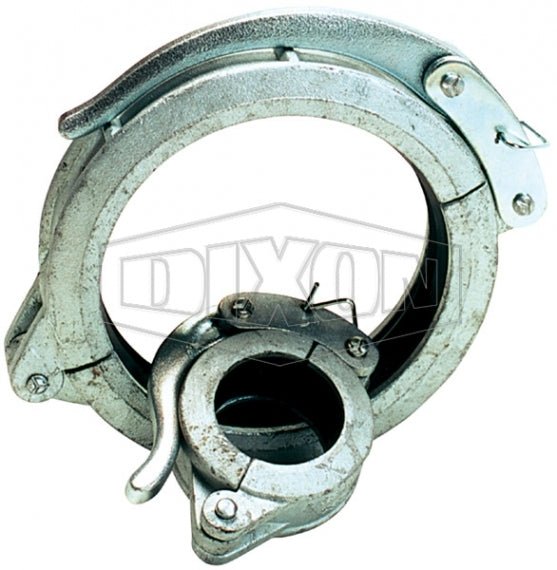

Dixon Minsup quick release coupling, 100 NB

This Dixon Minsup quick release shouldered coupling is the stainless steel version, for shouldered-end pipe. The cast components are CF8M, the machined components are 316 stainless steel, the locking pin is zinc plated carbon steel and the gasket is nitrile Buna rubber. There are Three sizes: 50, 100 and 150 NB.

The 50 and 100 NB sizes are rated at 300 PSI and the 150 NB size at 200 PSI. The coupling is made to fit standard pipe, couplings of this type are not recommended for use with air.

Where this product is used

• Temporary pipelines where fast assembly matters and stainless steel is wanted
• Joining shouldered-end pipe at 50, 100 and 150 NB (pipe OD 60.3, 114.3 and 165.1mm)

Features

• CF8M cast and 316 stainless steel machined components
• Zinc plated carbon steel locking pin, nitrile Buna gasket
• Working pressure: 300 PSI (50 and 100 NB), 200 PSI (150 NB)
• Not recommended for use with air

Key specifications

Choosing the right option

Check the pipe OD and the pipe end before you order: the pipe needs a shouldered end. These couplings are not recommended for air. The 150 NB size has the lower pressure rating of the three.

Related Dixon products: Dixon Minsup Quick Release Shouldered Coupling - SG Iron and Dixon Seal For Shouldered Coupling Buna-N.
