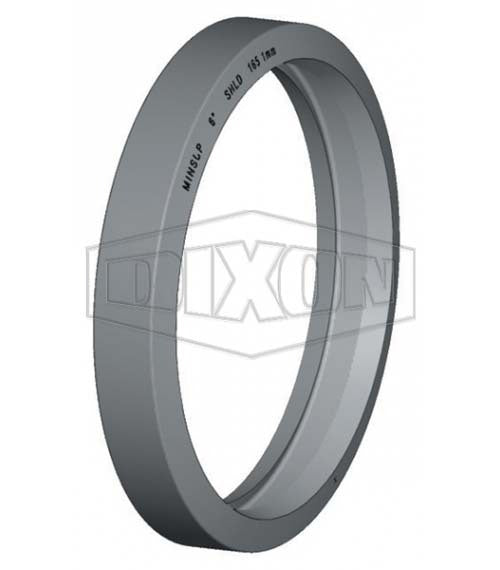

Dixon Buna-N shouldered coupling seal, 50 NB
Available
This Dixon seal is a nitrile buna rubber gasket for shouldered pipe couplings. The seal under its shouldered couplings and describes the seals for its quick release stainless steel couplings is standard Minsup range seals. The seal part numbers (05/048/22/...) are different from the coupling part numbers, so order by the seal number shown below.
Where this product is used
- Replacement seal for shouldered couplings used to join shouldered end pipe in mining and construction
- Spare seals for bolted and quick release shouldered couplings in the matching pipe size
Features
- Material: nitrile buna rubber
- Pipe outside diameter for each size, from 60.2mm to 609.6mm
- Part numbers in the 05/048/22 series
- Material: Nitrile buna rubber
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Nitrile buna rubber |
| Used with | Shouldered couplings (bolted and quick release) |
| Sizes | 50 NB, 80 NB, 100 NB, 150 NB, 200 NB, 250 NB, 300 NB, 350 NB, 400 NB, 450 NB, 600 NB |
| Part number series | 05/048/22/ |
Choosing the right option
Couplings are not recommended for use with air, so check the media before use. Confirm the media against the nitrile buna material before ordering.
Related Dixon shouldered couplings: Dixon Shouldered Bolted Coupling - Iron, Dixon Minsup Quick Release Shouldered Coupling - SG Iron and Dixon Minsup Quick Release Shouldered Coupling - Stainless Steel.
| Option | Part number | SKU |
|---|---|---|
| 50 | 05/048/22/000 | A0067457 |
| 80 | 05/048/22/002 | A0067458 |
| 100 | 05/048/22/003 | A0067459 |
| 150 | 05/048/22/005 | A0067460 |
| 200 | 05/048/22/006 | A0067462 |
| 250 | 05/048/22/007 | A0067464 |
| 300 | 05/048/22/008 | A0067465 |
| 350 | 05/048/22/009 | A0067466 |
| 400 | 05/048/22/020 | A0067467 |
| 450 | 05/048/22/021 | A0067468 |
| 600 | 05/048/22/024 | A0067470 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Seal For Shouldered Coupling Buna-N: 50
SKU: A0067457 | Model: 05/048/22/000
Dixon 05/048/22/000: Buna-N shouldered coupling seal, 50 NB.
