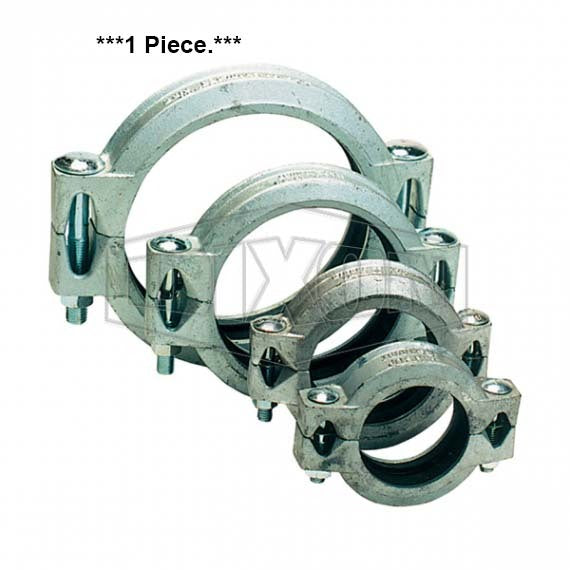

Dixon Shouldered Bolted Coupling 2" (50mm) - Iron
Regular price
$27.46
Sale price
$27.46
Regular price
Inc. GST
Available
Iron construction handles the temperature, pressure and media of industrial duty. Seal: Nitrile Rubber. Construction. SG Iron to AS 1831 400-250-12. Bolts & Nuts: Metric, grade 8.8. Nitrile Rubber gasket. 2 bolts per clamp. Dixon Shouldered Bolted Coupling 2" (50mm) - Iron.
Key Specifications
| Size | 10 variants available |
| Working Pressure | 754 PSI (5.2 MPa) / 580 PSI (4.0 MPa) / 261 PSI (1.8 MPa) / 232 PSI (1.6 MPa) |
| Material | Iron |
| Seal | Nitrile Rubber |
| Weight (kg) | 10 variants available |
| Torque | 30 Nm maximum / 73 Nm maximum / 143 Nm maximum / 248 Nm maximum |
| Pipe OD | 10 variants available |
| Maximum Tightening Torque (nm) | 30 / 73 / 143 / 248 |
| No. Per Clamp | 2 / 4 |
| Nut & Bolt Size (mm) | M12 x 65 / M12 x 75 / M12 x 90 / M16 x 120 / M20 x 150 / M24 x 150 |
| Standards referenced | AS 1831 |
Where This Is Used
- For joining of shouldered end pipe in mining and construction industries.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
50
Model Number: 08/048/20/000
-
80
Model Number: 08/048/20/002
-
100
Model Number: 08/048/20/003
-
150
Model Number: 08/048/20/005
-
250
Model Number: 08/048/20/007
-
300
Model Number: 08/048/20/008
-
350
Model Number: 08/048/20/020
-
400
Model Number: 08/048/20/021
-
450
Model Number: 08/048/20/022
-
600
Model Number: 08/048/20/024
