Dixon Shouldered weld ring, 50mm

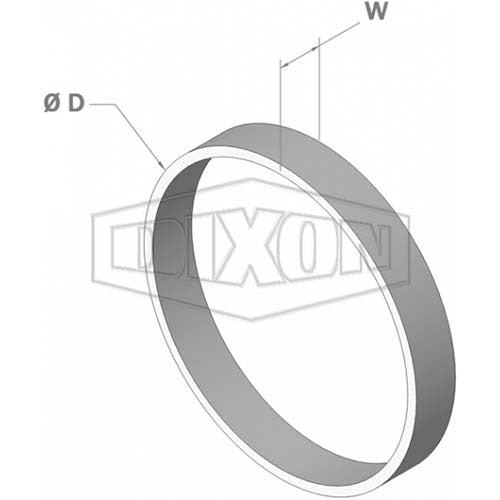

This Dixon shouldered weld ring is a ring that is welded onto a plain pipe end to form the shoulder that a bolted shouldered coupling grips. The ring OD runs from 66.5mm on the 50 NB to 232.0mm on the 200 NB, and the 150 USA ring fits a 168.3mm pipe OD with a 178.0mm ring OD. These parts are shoulder rings.

Where this product is used

• Forming a shoulder on plain pipe so it can be joined with a bolted shouldered coupling in mining and construction pipework
• Fabricating shouldered ends on plain pipe

Features

• Mild steel shoulder ring for welding to a pipe end
• Sizes 50, 80, 100, 150 and 200 NB, plus 150 USA
• Material: Mild steel
• Use: Welded onto plain pipe to form a shoulder for a shouldered coupling

Key specifications

Choosing the right option

Pick the ring by pipe OD, not by nominal size alone, particularly at 150 NB where there are two pipe diameters. The bolted coupling clamps behind the shoulder, so the weld matters. Welding is work for a qualified welder.

The 150 USA ring is for a 168.3mm pipe OD; the standard 150 NB ring is for 165.1mm. Do not mix them. The larger 250 to 600 NB sizes are the split rings, a separate product.

Related Dixon shouldered products: Dixon Shouldered Weld Ring Split Type - Mild Steel, Dixon Shouldered Bolted Coupling - Iron and Dixon Seal For Shouldered Coupling Buna-N.
