Dixon Minsup shouldered butterfly valve, 4" (100mm)

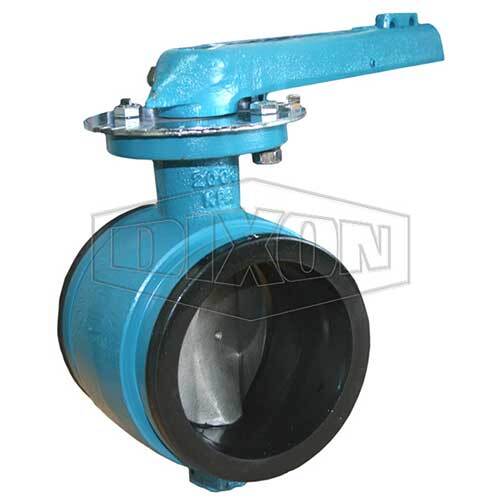

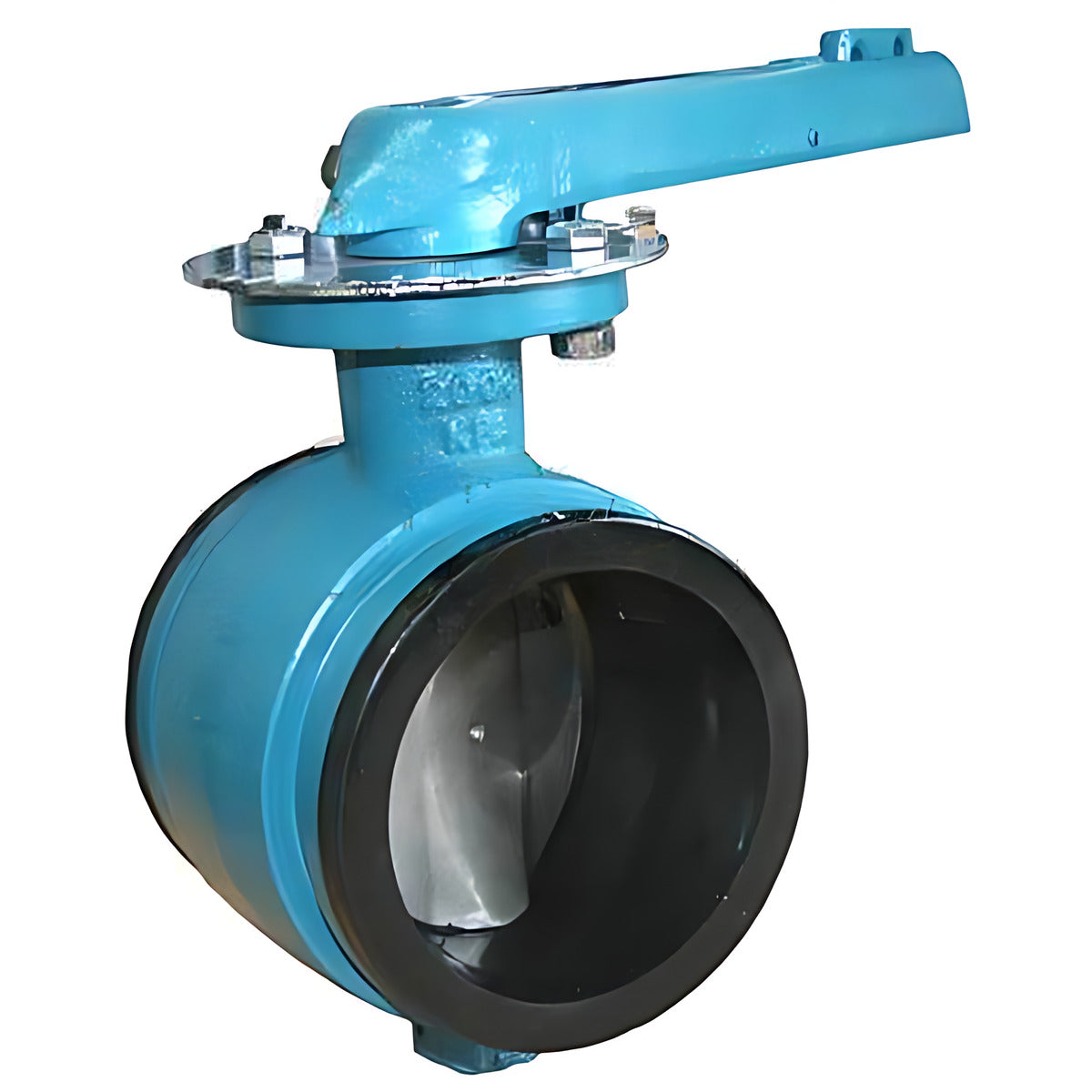

This Dixon Minsup butterfly valve is lever operated and has shouldered ends. It has an SG iron body, a nitrile butadiene lining moulded to the body and a cast stainless steel disc on a 316 stainless steel shaft. It comes in the 4" (100mm) and 6" (150mm) sizes.

It is rated at 290 PSI (20 bar) on water and 150 PSI (10 bar) on air, from -20 to 60°C. The lever can be padlocked out in any of 11 positions, the shouldered ends are in accordance with ANSI/AWWA C606.

Where this product is used

• Mining operations, the valve suits abrasive materials
• Water and air lines, and other media that suit the nitrile butadiene lining and stainless steel trim, up to the pressures above
• Isolation points where the lever needs to be padlocked in a set position

Features

• Lever operated, padlockable in any of 11 positions
• SG iron body with nitrile butadiene lining (70 duro) moulded to the body
• Cast stainless steel disc (grade CF8M) and 316 stainless steel shaft
• High flow coefficient disc design that minimises flow resistance and cavitation
• Shouldered ends in accordance with ANSI/AWWA C606
• Water 290 PSI (20 bar), air 150 PSI (10 bar), -20 to 60°C

Key specifications

Choosing the right option

Choose the size from your shouldered pipe ends and check that the couplings suit shouldered ends. Check the media against the nitrile butadiene lining and the stainless steel disc before use. Handles and actuators interchange between the two sizes. For a shouldered gate valve, see Dixon Shouldered Gate Valve Ductile Iron Body.
