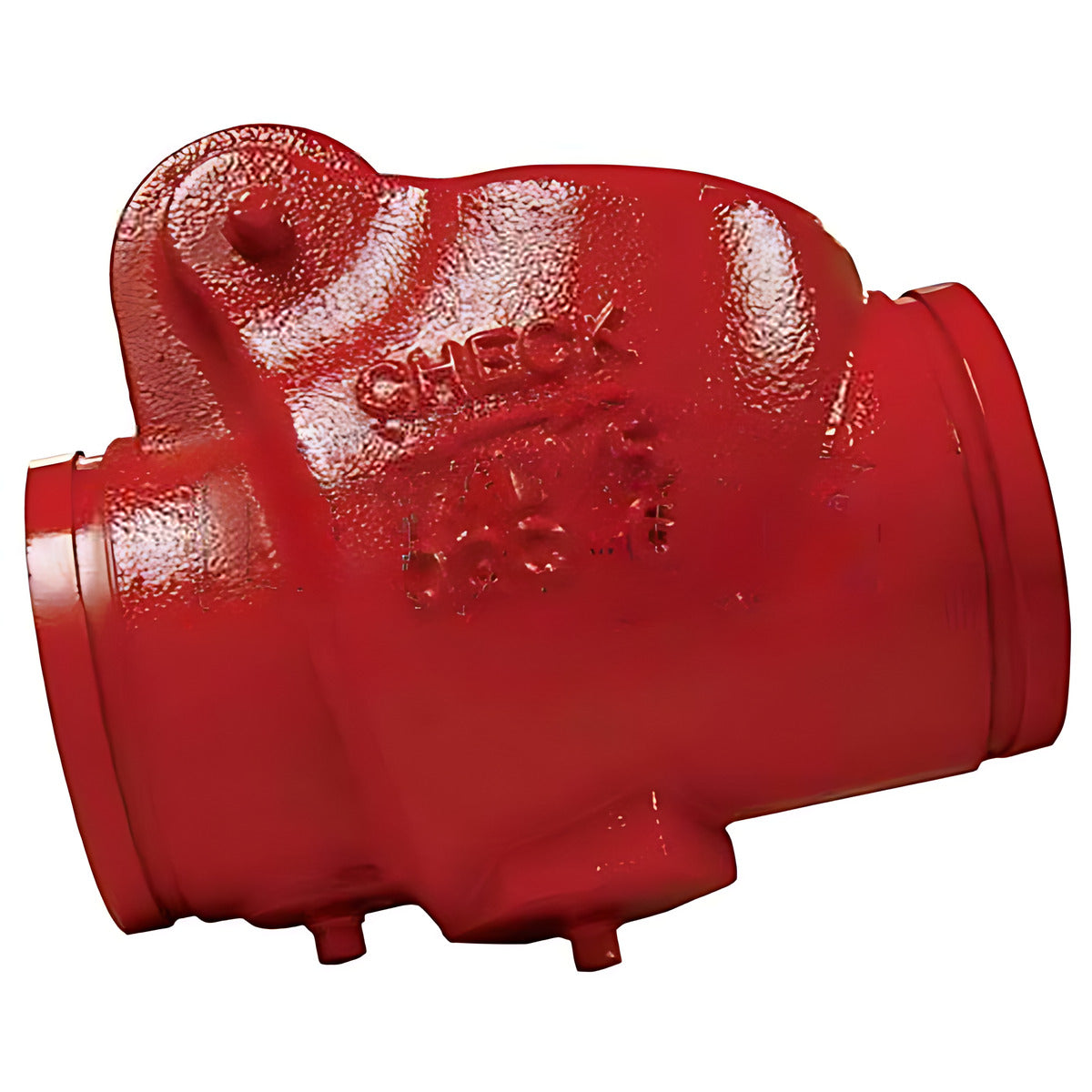

Dixon Ductile iron grooved swing check valve, 2" (50mm)
Out of stock
This Dixon swing check valve has a ductile iron body with an FBE (epoxy) coating and a resilient seat, and is made for grooved pipe systems. It comes in 6 sizes, from 2" (50mm) to 8" (200mm). It is rated at 350 PSI and 0 to 80°C, and gives the groove as AWWA C606 or metric.
The clapper is spring assisted for non-slam closure, the valve is UL and FM approved.
Where this product is used
- One-way flow lines on grooved pipework, to stop water flowing back
- General hydraulic and mechanical services and fire protection
Features
- Ductile iron body, FBE coated, with a resilient seat
- Spring-assisted clapper for quick, non-slam closure before flow reverses
- Grooved ends to AWWA C606 or metric
- Working pressure 350 PSI, temperature 0 to 80°C
- UL and FM approved
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Body | Ductile iron, FBE coated (epoxy coated inside and out) |
| Seat | Resilient seat |
| Clapper and spring | 304 stainless steel |
| Facing seal and gasket | EPDM |
| End connection | Grooved to AWWA C606 or metric |
| Working pressure | 350 PSI |
| Temperature | 0 to 80°C |
| Approvals | UL and FM approved |
Choosing the right option
Check the approval you need against the markings on the valve the approvals.
Related Dixon valves: Dixon Bronze Swing Check Valve Screwed Female BSP, Dixon Minsup Shouldered Butterfly Valve Lever Operated and Dixon Shouldered Gate Valve Ductile Iron Body.
| Option | Part number | SKU |
|---|---|---|
| 50 | VGSCV-60 | A0071766 |
| 65 | VGSCV-76 | A0071767 |
| 80 | VGSCV-88 | A0071768 |
| 100 | VGSCV-114 | A0071763 |
| 150 | VGSCV-165 | A0071764 |
| 200 | VGSCV-219 | A0071765 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Ductile Iron Grooved Swing Check Valve: 50
SKU: A0071766 | Model: VGSCV-60
Dixon VGSCV-60: 2" (50mm) Grooved Swing Check Valve, 350 PSI. Pipe OD: 60.3mm, Face-to-face: 169mm, Body: Ductile iron, FBE coated.
