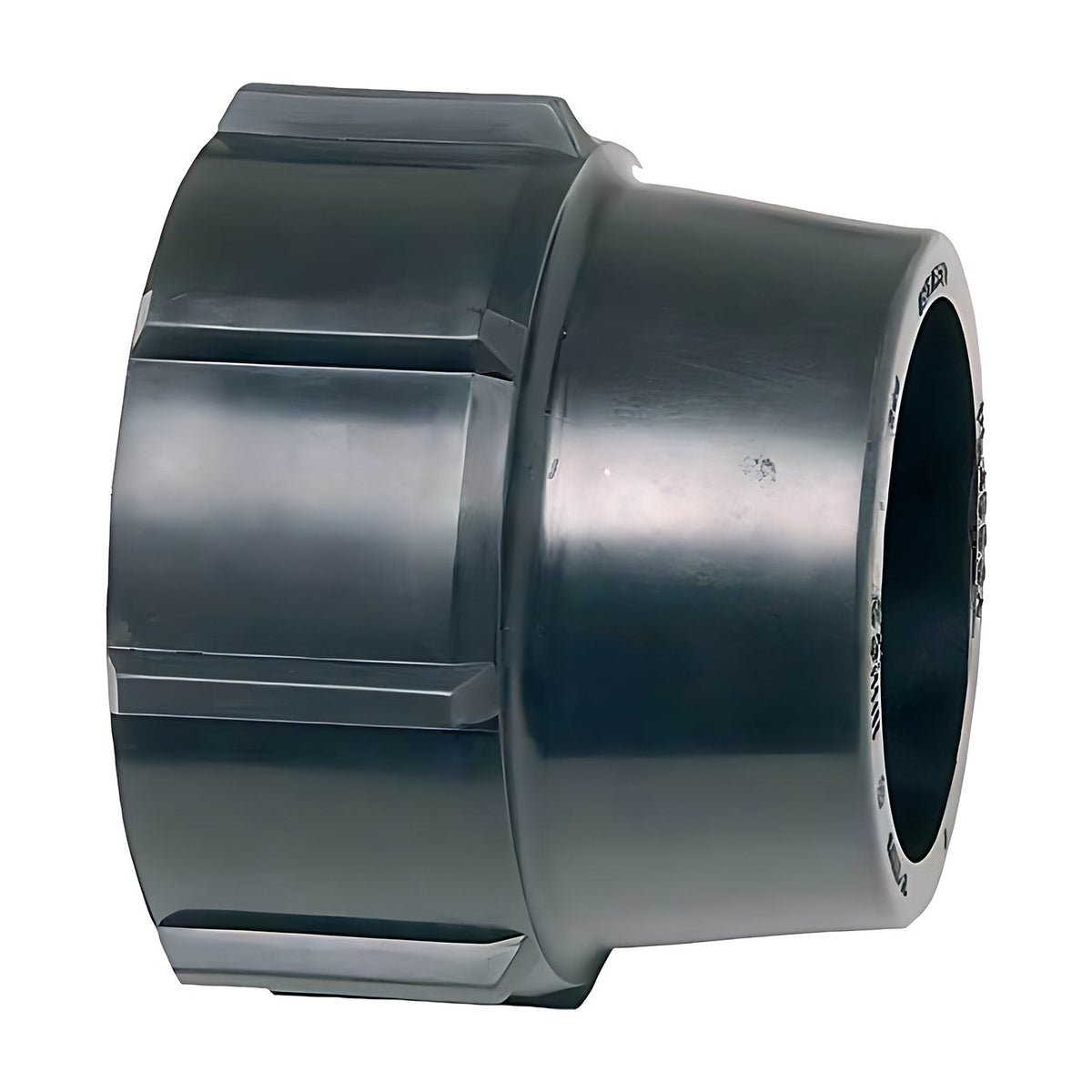

Dixon PCF-NUT-63 63 mm Plasson Metric Nut

This Dixon Plasson metric nut is the metric nut for Plasson compression fittings, which are used to join polyethylene pipe. Dixon lists the 7004 metric nut in two sizes in this range: 63 mm and 110 mm (manufacturer-stated).

Dixon says Plasson compression fittings connect all forms of polyethylene pipe and are rated PN16, and that each fitting includes two split rings, two seals and two nuts. The split rings are polyacetal and the seals are NBR (manufacturer-stated).

Where this product is used

• Replacing a nut on a Plasson metric compression fitting for polyethylene pipe (manufacturer-stated).
• Plasson fittings in underground and surface mining, plumbing, irrigation, civil construction, gas installation, industrial fluid transfer and wastewater systems (manufacturer-stated).

Features

• Metric nut in 63 mm and 110 mm sizes, Dixon series 7004 (manufacturer-stated)
• Plasson compression fittings are rated PN16 (manufacturer-stated)
• Each fitting uses two nuts, two split rings and two seals (manufacturer-stated)
• For connecting polyethylene pipe (manufacturer-stated)

Common specifications

Key specifications

Dixon lists nut sizes 63 mm and 110 mm for the 7004 metric nut. The PN16 rating is stated for the Plasson metric fittings as a system, not for the nut alone.

Selecting the right option

Match the nut size to the pipe size (d) of the fitting it belongs to, and keep the split rings and seals that came with that fitting. Dixon says Plasson fittings and valves are limited to the maximum temperature of the polyethylene pipe and are not intended for hot water applications, and that for aggressive chemicals the end user should test suitability (manufacturer-stated).
