Dixon EXT-ABE-4.5KG 4.5 kg ABE Powder Fire Extinguisher, Rating 4A:80B:E
Available

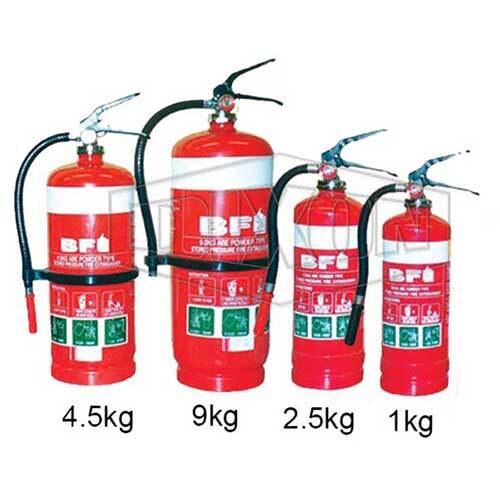

This Dixon ABE powder fire extinguisher uses multi-purpose powder that Dixon says is used on class A (carbonaceous) fires, by sealing burning embers, and also on class B (flammable liquid) and class E (electrical) fires. Dixon lists four sizes: 1.0, 2.5, 4.5 and 9.0 kg (manufacturer-stated).
Dixon states the extinguishers are approved by Australian Standard to AS1841.5, with a cold roll carbon steel cylinder, a brass operating valve and an operating temperature of -20 to 60 degrees C. Fire ratings step up with size, from 1A:20B:E on the 1.0 kg to 6A:80B:E on the 9.0 kg (manufacturer-stated).
Where this product is used
- Home, garage, boat, car and caravan fire protection (manufacturer-stated).
- Fire risks that involve ordinary combustibles, flammable liquids and energised electrical equipment (manufacturer-stated).
Features
- Multi-purpose ABE powder for class A, B and E fires (manufacturer-stated)
- Four sizes: 1.0, 2.5, 4.5 and 9.0 kg (manufacturer-stated)
- Approved by Australian Standard to AS1841.5 (manufacturer-stated)
- Cold roll carbon steel cylinder and brass operating valve (manufacturer-stated)
- Operating temperature: -20 to 60 degrees C (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Fire class | ABE (classes A, B and E) |
| Approval | AS1841.5 (manufacturer-stated) |
| Operating temperature | -20 to 60 degrees C |
| Test pressure | 2.5 MPa (25 bar) |
| Cylinder material | Cold roll carbon steel |
| Operating valve | Brass |
| Sizes | 1.0, 2.5, 4.5 and 9.0 kg |
Key specifications
| Dixon part number | Capacity (kg) | Fire rating | Height (mm) | Diameter (mm) | Cylinder thickness (mm) | Operating pressure at 23 degrees C (kPa) |
|---|---|---|---|---|---|---|
| EXT-ABE-1KG | 1.0 | 1A:20B:E | 325 | 91.5 | 1.0 | 1,000 |
| EXT-ABE-2.5KG | 2.5 | 3A:40B:E | 400 | 118.5 | 1.2 | 1,000 |
| EXT-ABE-4.5KG | 4.5 | 4A:80B:E | 490 | 157 | 1.4 | 1,400 |
| EXT-ABE-9KG | 9.0 | 6A:80B:E | 570 | 176 | 1.6 | 1,400 |
Figures are from Dixon's fire equipment catalogue. The existing store descriptions show a fire rating of 1A:20B:E for every size; the catalogue rating for each size is the one in the table. Dixon's documents give the full weight of the 4.5 kg and 9.0 kg units differently, so full weights are not shown.
Selecting the right option
Choose the size from the fire rating you need and where the extinguisher will sit: the 1.0 kg is rated 1A:20B:E and the 9.0 kg is rated 6A:80B:E, and the larger units are taller and heavier. Check the rating against your site risk assessment or fire safety plan before you buy. For a vehicle, see the quick release bracket and the complete kit in Related products, and for tracking inspections see the maintenance record tag.
