Dixon Probe Housing FloTech Checkmate Overfill Detection Stainless
Out of stock

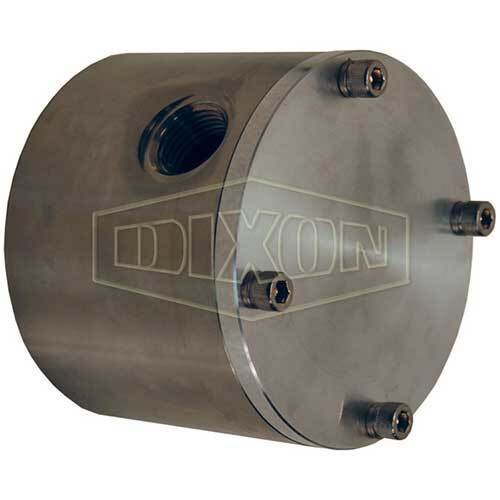

This Dixon Flotech Checkmate probe housing is the 316 stainless steel housing for the FT150S overfill probe, with an 80mm (3") NPS female thread. It is the housing only, and the probe is ordered separately. It is threading onto an 80mm (3") clean-out nipple on a DOT 407 tank, and a maximum working pressure of 900 PSI at 21°C.
Its bill of materials lists a stainless steel housing with an aluminium lid, an NBR O-ring, stainless steel screws and lock washers and a PTFE gasket.
Where this product is used
- Mounting an FT150S overfill probe on a DOT 407 tanker clean-out nipple
- Replacing a damaged or corroded probe housing on a chemical tanker, where the stainless steel housing is used
Features
- 316 stainless steel housing with 80mm (3") NPS female thread
- Housing only: the probe is ordered separately
- Aluminium lid, NBR O-ring, stainless steel screws and PTFE gasket
- Maximum working pressure 900 PSI at 21°C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Probe housing, 80mm (3") NPS female thread |
| Material | 316 stainless steel |
| Thread | 80mm (3") NPS female |
| Components (bill of materials) | Stainless steel housing, aluminium lid, NBR O-ring, stainless steel screws and lock washers, PTFE gasket |
| Maximum working pressure | 900 PSI at 21°C |
| Probe | FT150S (sold separately) |
Choosing the right option
The housing threads onto an 80mm (3") clean-out nipple on a DOT 407 tank, so confirm the nipple size on your tank before ordering. The sensor length can be adjusted with 20mm (3/4") NPT pipe nipples if a longer reach is needed.
Related Dixon products: Dixon Probe Only FloTech Checkmate Overfill Detection Stainless, Dixon Replacement Face Plate Assembly Aluminum Nose Cone, Blue Optic Cap and Dixon Single Socket Optic Dust Cap.
