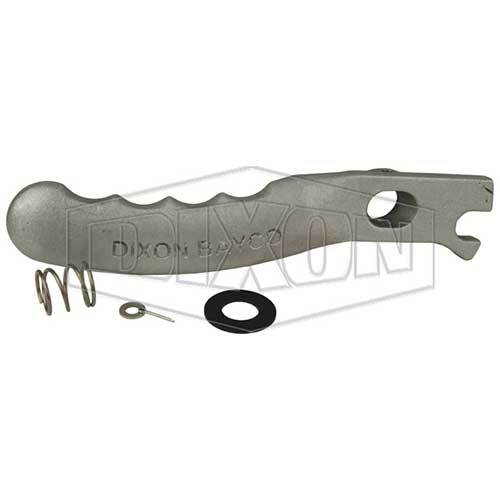

Dixon Replacement Fixed Handle Assembly Suits 5204 Series API Valve

This is the replacement fixed handle assembly for Dixon 5204 API valves with a pull-down-to-open handle. The part is the replacement handle kit, pull-down version only. The 5204 handle is ergonomically curved, opening the valve with a short 62 degree stroke.

By the bill of materials the kit covers the fixed handle, handle pin, shaft bearing, washer, cotter pin, handle spring and handle shaft spring washer.

Where this product is used

• Replacing a damaged or worn fixed handle on a 5204 series API valve with a pull-down handle
• Renewing the handle pin, spring and washers along with the handle, because they are supplied in the kit

Features

• Fixed handle assembly for pull-down-to-open 5204 API valves
• Includes handle pin, shaft bearing, washer, cotter pin and springs
• Pull-down version only, a pull-up version has its own kit
• Removable-handle models (5204C, 5204NGC) use kit 5204K5

Key specifications

Choosing the right option

This kit is for pull-down-to-open valves with a fixed handle. The kit is the pull-down version only, so confirm the handle type on your valve before ordering.

Related Dixon products: Dixon Replacement Handle Kit Suits 5204A, 5204NGA API Valve, Dixon Replacement Detachable Handle Assembly Suits 5204C & 5204NGC API Valve and Dixon O-Ring Baylast Complete Rebuild Kit Suits 5204 API Valve.
