Dixon O-Ring Baylast Complete Rebuild Kit Suits 5204 API Valve

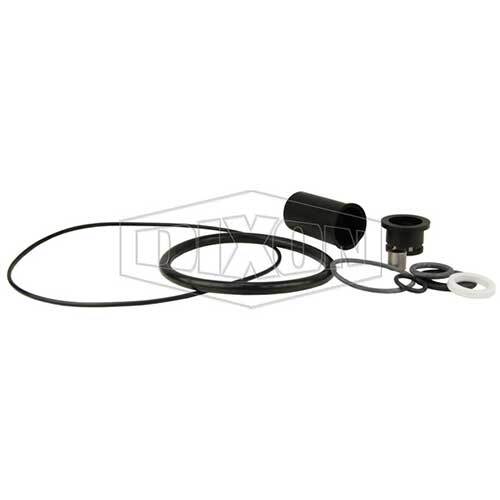

This is the complete Baylast rebuild kit for Dixon 5204 series API bottom-loading valves. It is a complete rebuild kit of Baylast O-rings and bearings, and the 5204 can be rebuilt without taking the valve off the tank. By Dixon's bill of materials the kit covers the shaft bearing, poppet bearing, poppet roller and roller bearing, the Baylast poppet, nose ring, shaft and sight glass O-rings, the dust seal O-ring, the handle shaft spring washer and the U-cup seal.

Where this product is used

• Overhauling a 5204 series API valve in one job, with the seals and bearings replaced together
• Rebuilding a valve on the tank, the 5204 can be rebuilt without removing it from the tanker

Features

• Complete rebuild kit of Baylast O-rings and bearings
• Includes poppet, nose ring, shaft, sight glass and dust seal O-rings
• Includes shaft, poppet and poppet roller bearings and the poppet roller
• Includes handle shaft spring washer and U-cup seal
• Dixon also offers a FKM version as 5204KV2

Key specifications

Choosing the right option

This kit uses Baylast seals. If only the poppet O-ring needs replacing, the single poppet O-ring (5204K1) is sold on its own.

Related Dixon products: Dixon Poppet O-Ring Baylast Suits 5204 API Valve, Dixon Replacement Anodized Nose Ring With Baylast Gasket Suits 5204 API Valve and Dixon Replacement Fixed Handle Assembly Suits 5204 Series API Valve.
