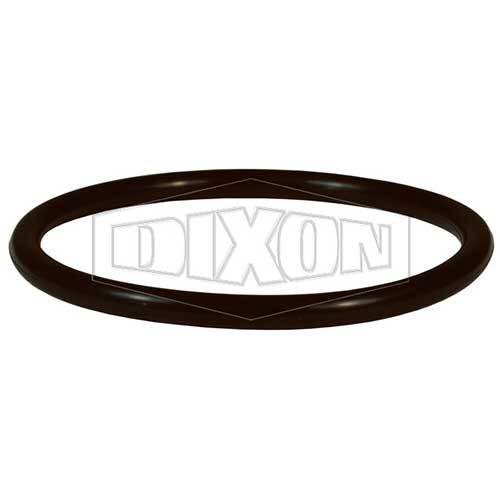

Dixon Poppet O-Ring Baylast Suits 5204 API Valve

This is the Baylast poppet O-ring for Dixon 5204 API bottom-loading valves. In Dixon's 5204 bill of materials it is the sealing ring on the poppet inside the valve (item 16A), and the part is sold on its own as a single O-ring. Baylast is Dixon's own seal material.

Where this product is used

• Replacing a worn or damaged poppet seal on a 5204 series API valve without a full rebuild

Features

• Baylast poppet O-ring, sold as a single O-ring
• For 5204 series and 5206 series API valves
• Matches Dixon bill of materials item 16A
• A FKM poppet O-ring is sold separately as 5204KV1

Key specifications

Choosing the right option

Use this part when the poppet O-ring is the only seal that needs replacing. If the valve is being overhauled, Dixon also offers a complete rebuild kit (5204K2) that includes the poppet O-ring with the other O-rings and bearings. Valves with FKM seals use the FKM poppet O-ring 5204KV1, and valves with PTFE encapsulated seals use the PTFE kit (5204K6). Check which seal your valve has before ordering.

Related Dixon products: Dixon O-Ring Baylast Complete Rebuild Kit Suits 5204 API Valve, Dixon PTFE Encapsulated Seal Kit Suits 5204TNG API Valve and Dixon Replacement Anodized Nose Ring With Baylast Gasket Suits 5204 API Valve.
