Dixon PTFE Encapsulated Seal Kit Suits 5204TNG API Valve
Out of stock

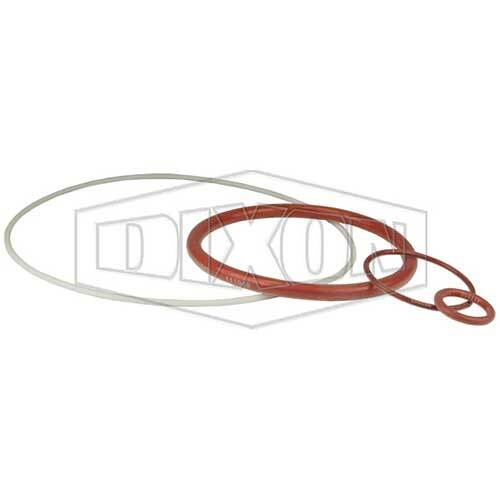

This is the PTFE encapsulated seal kit for Dixon 5204 API valves. It is a kit of PTFE encapsulated poppet, nose, shaft and sight glass O-rings.
Where this product is used
- Re-sealing a 5204TNG API valve that uses PTFE encapsulated seals
Features
- PTFE encapsulated seal kit
- Poppet O-ring, nose O-ring, shaft O-ring and sight glass O-ring
- For 5204 series and 5206 series API valves
- Suits the 5204TNG (PTFE seals, no sight glass)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | PTFE encapsulated seal kit |
| Contents | Poppet O-ring, nose O-ring, shaft O-ring, sight glass O-ring |
| Suits | 5204 series and 5206 series API valves, including the 5204TNG |
| Bill of materials items | 16C, 17B, 18B, 25B |
Choosing the right option
Use this kit on valves that already have PTFE encapsulated seals, such as the 5204TNG. A valve built with Baylast seals uses the Baylast kits instead (5204K1 for the poppet O-ring, 5204K2 for a full rebuild). Check the seal type fitted to your valve before ordering, because the seal materials are not interchangeable.
Related Dixon products: Dixon Poppet O-Ring Baylast Suits 5204 API Valve, Dixon O-Ring Baylast Complete Rebuild Kit Suits 5204 API Valve and Dixon Replacement Anodized Nose Ring With Baylast Gasket Suits 5204 API Valve.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon PTFE Encapsulated Seal Kit Suits 5204TNG API Valve
SKU: A0157372 | Model: 5204K6
Dixon 5204K6: PTFE encapsulated seal kit.
