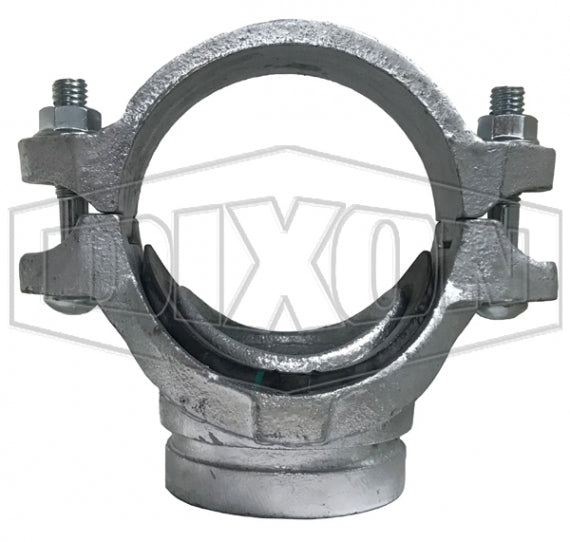

Dixon Roll Grooved Mechanical Tee Galvanised

Dixon Roll Grooved Mechanical Tee Galvanised

Applications

• Mechanical tee outlets provide a direct branch connection on a pipe run where sufficient space allows a hole to be cut. The cut hole is slightly oversize to the required branch pipe size to receive an integral locking collar and sealing gasket on the Mechanical Tee that secures the outlet in position.
• Eliminates in most cases; three pipe cuts a tee piece and three couplings.

Features

• Markings: Style 15G

Construction

• Housing- Ductile Iron conforming to ASTM-A536

Installation

• Hole cutting - Before assembly of a Mechanical Tee outlet it is necessary to pre-cut a hole in the pipe to the correct size to suit the branch size. The hole must be drilled on the pipe centre line.
• It is important that the pipe surface around the hole and around the pipe circumference under the Mechanical Tee gasket seating area is free from blemishes; indentations and burrs are likely to adversely affect gasket seating.
