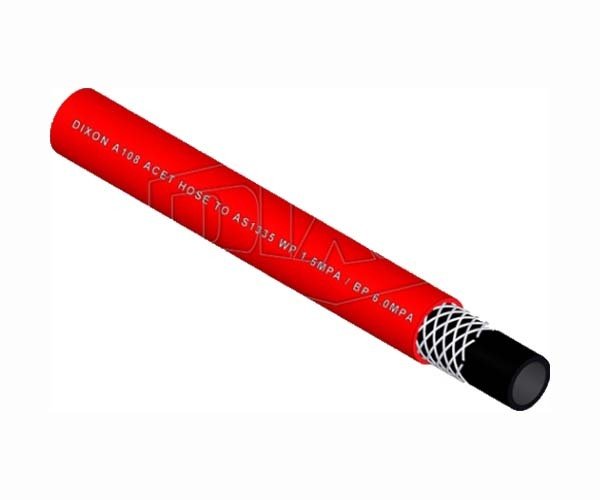

Dixon Single line welding hose, 100 m / Red-A108010B100

This Dixon single line rubber hose is made for oxygen (blue) and acetylene (red) supply for welding, cutting and allied processes. It has an SBR blend tube, a pin-pricked SBR blend cover and polyester yarn reinforcement, the cover conforms to AS1335. It is rated at 217 PSI (15 bar) working pressure and 870 PSI (60 bar) burst for temperatures from -20 to 70°C.

Where this product is used

• Oxygen supply (blue hose) to welding and cutting equipment
• Acetylene supply (red hose) to welding and cutting equipment
• Making up separate oxygen and acetylene lines of different lengths for a torch set

Features

• Single line hose in blue (oxygen) and red (acetylene)
• Cover conforms to AS1335
• Tube: SBR blend, black, cover: SBR blend, smooth, pin-pricked, reinforcement: polyester yarn
• Working pressure 217 PSI (15 bar), burst 870 PSI (60 bar)
• Temperature range -20 to 70°C, ozone, weather, abrasion and oil mist resistant

Key specifications

Choosing the right option

Oxygen and acetylene hoses are colour coded so the two gases are not swapped, so check the colour and the part number before you order and do not use a hose for a gas it is not made for. Pick the bore from your regulator and torch fittings, and choose the coil length to suit your job.

Related Dixon hose: Dixon Rubber Twin Line Welding Hose Blue/Red and Dixon Rubber Single LPG Hose Orange.
